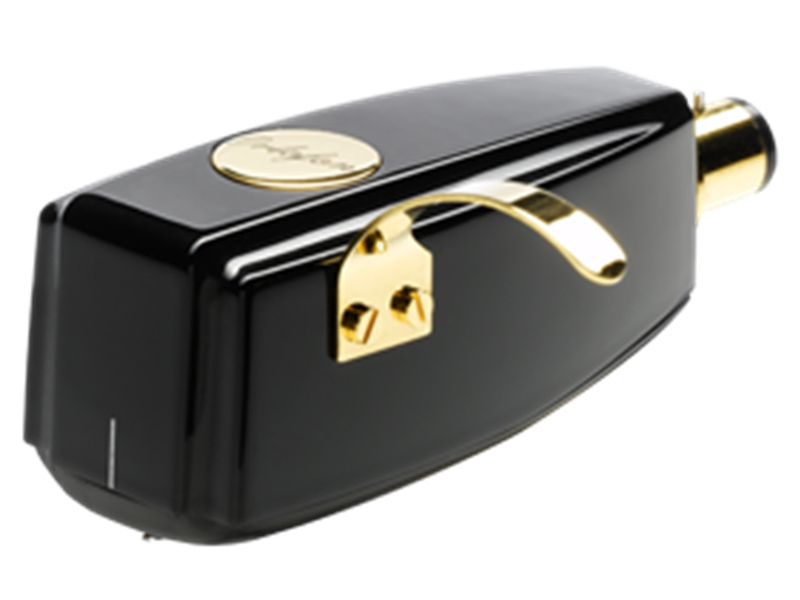

The SPU Synergy GM modernizes the classic SPU design with a number of optimizations designed for optimum compatibility and sonic purity
The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.

While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.

Technical data

  • Output voltage at 1000 Hz, 5cm/sec. - 0.5 mV
  • Channel balance at 1 kHz  < 1.5 dB
  • Channel separation at 1 kHz  > 23 dB
  • Channel separation at 15 kHz  > 15 dB
  • Frequency response - 20-20.000 Hz ± 2 dB
  • Tracking ability at 315Hz at recommended tracking force *) > 70 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 2.5-3.5 g (25-35 mN)
  • Tracking force, recommended - 3.0 g (30 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 2 ohm
  • Recommended load impedance - 10 - 50 ohm
  • Cartridge body material - Ground wood and resin composite
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge colour - Shiny Black
  • Cartridge weight - 30 g
