2M styli interchangeability

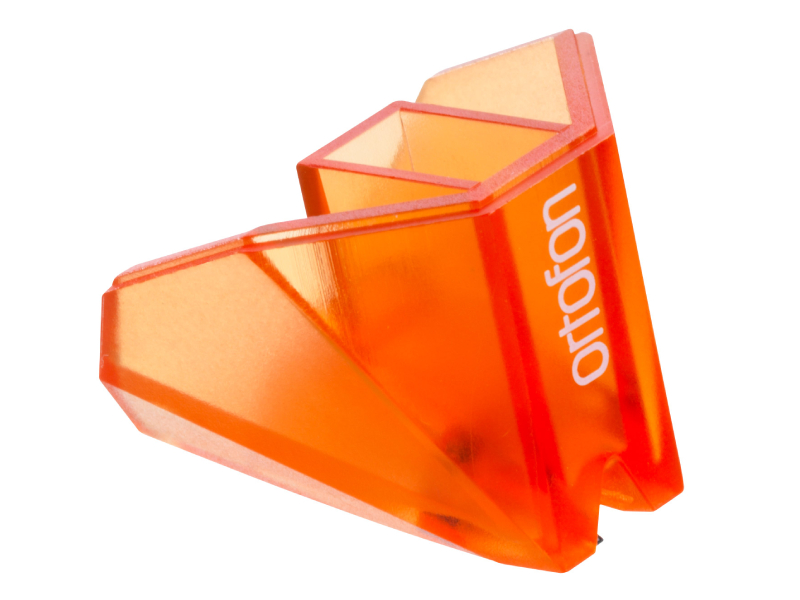

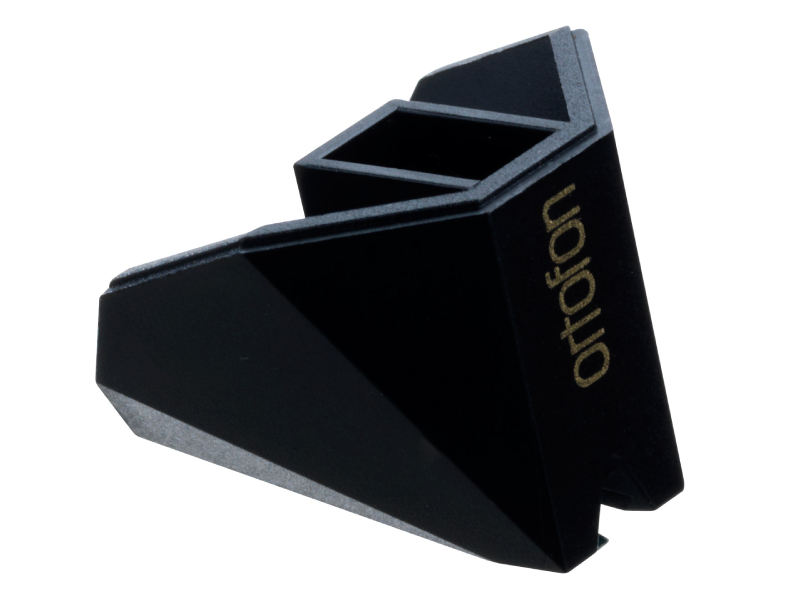

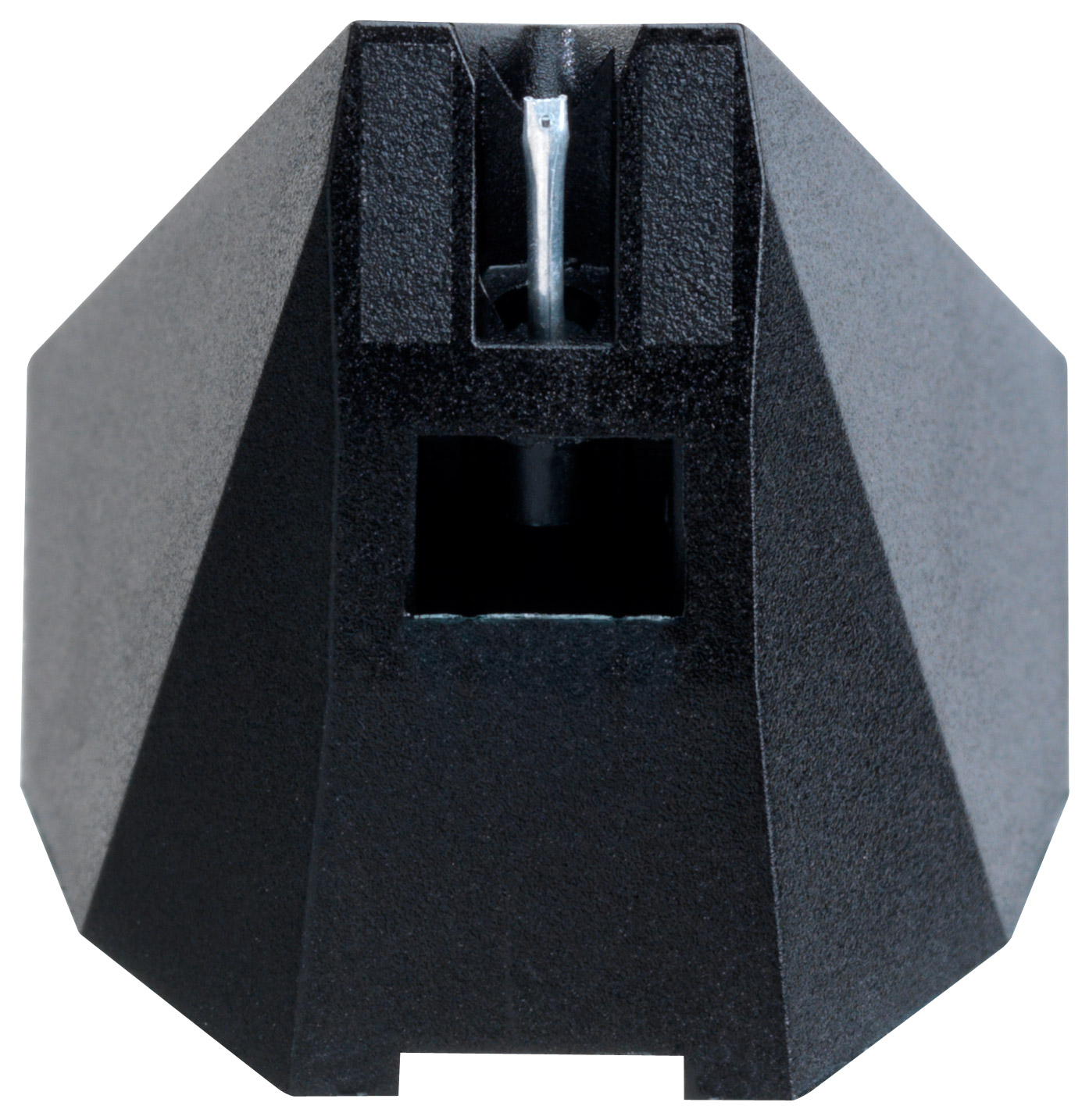

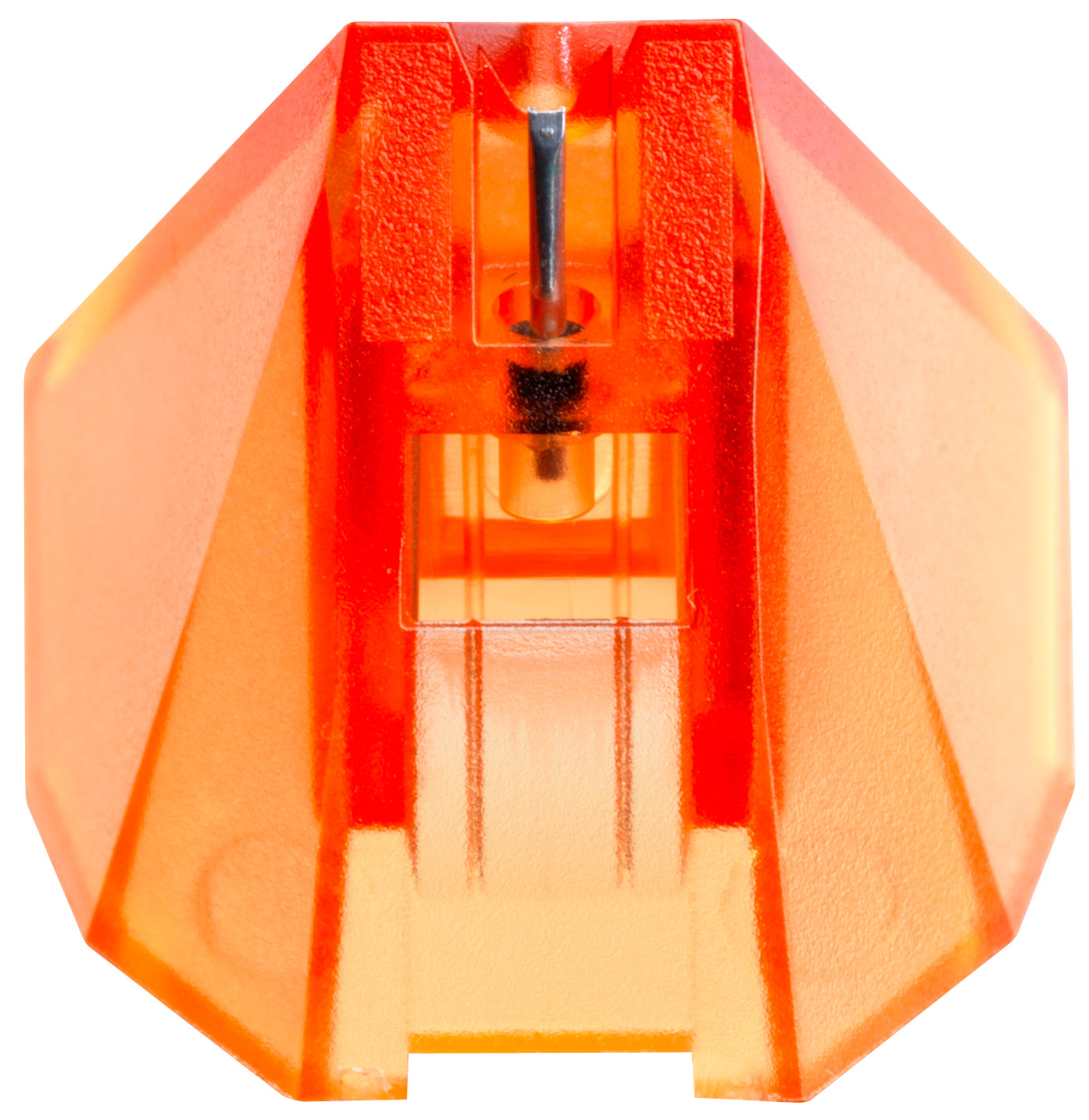

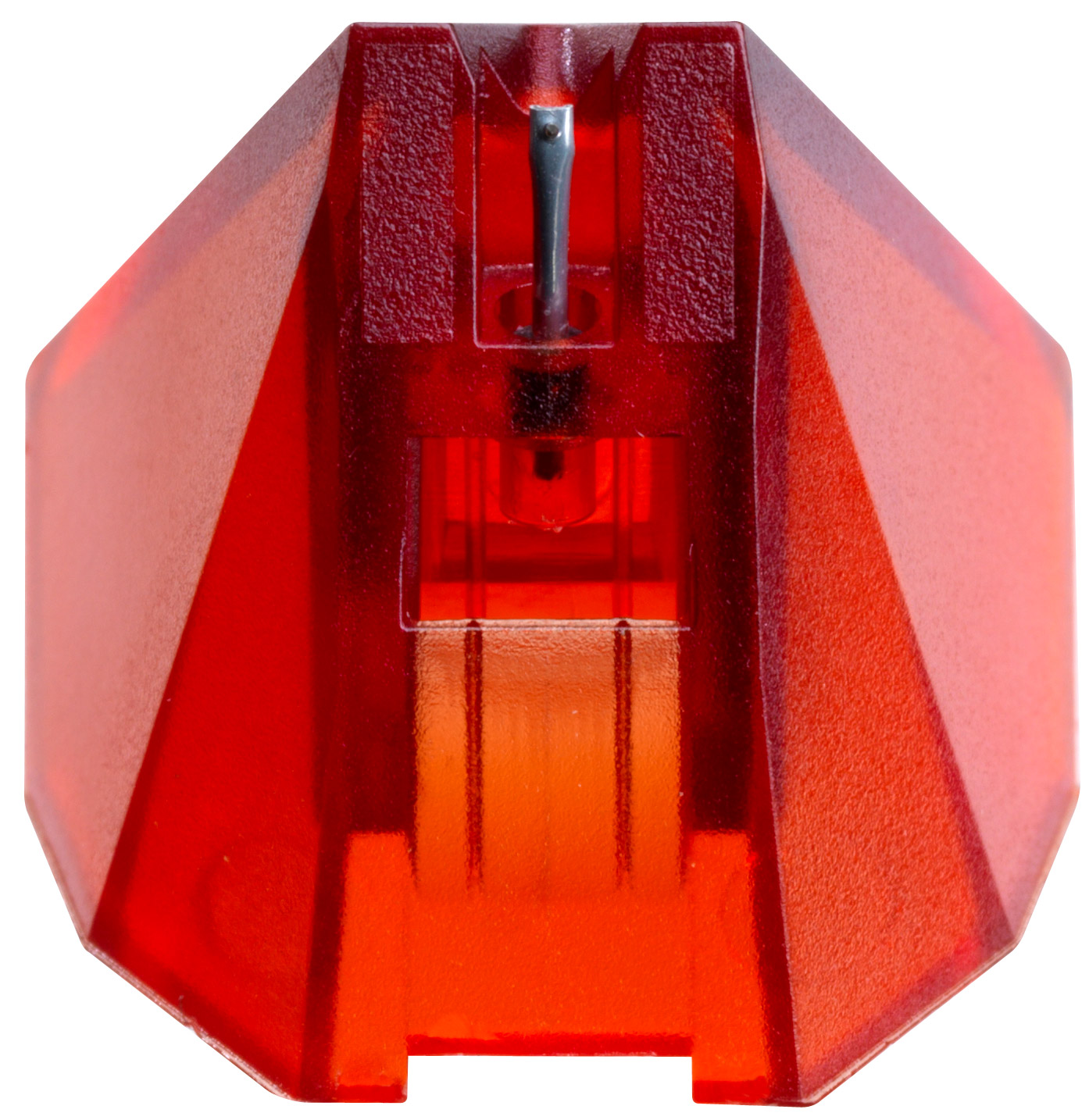

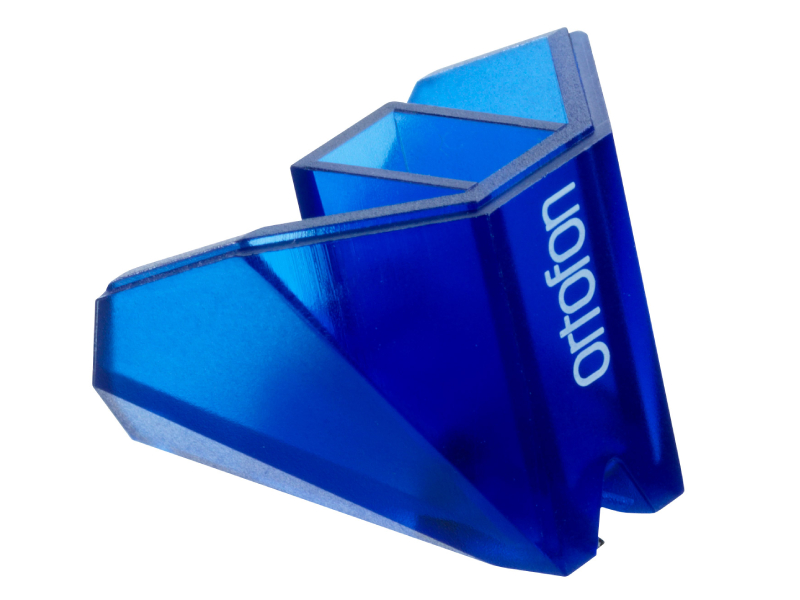

Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges’ engines, coils and magnets configurations are not quite identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78.

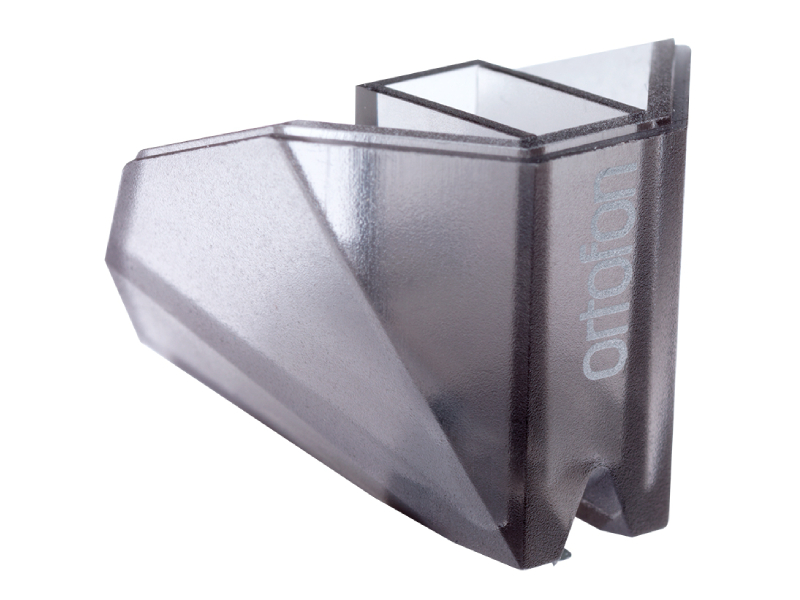

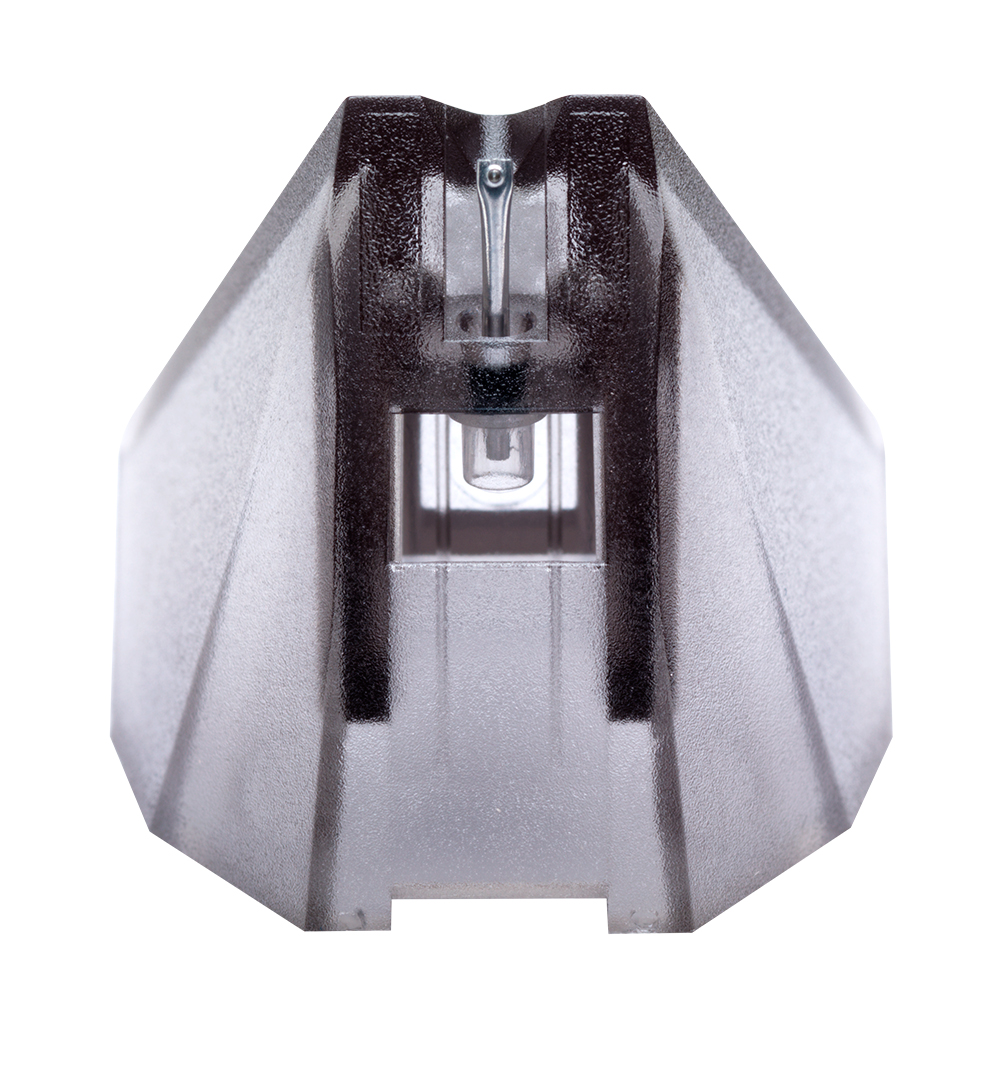

2M Silver phono cartridge is an OEM (Original Equipment Manufacturer) model that takes most of the characteristics of the 2M Red. 2M Silver's special feature is silver plated copper coils, the same coil wire material as in the 2M Bronze and Black models, with a reduced number of windings.
2M series styli are interchangeable within the below combinations:

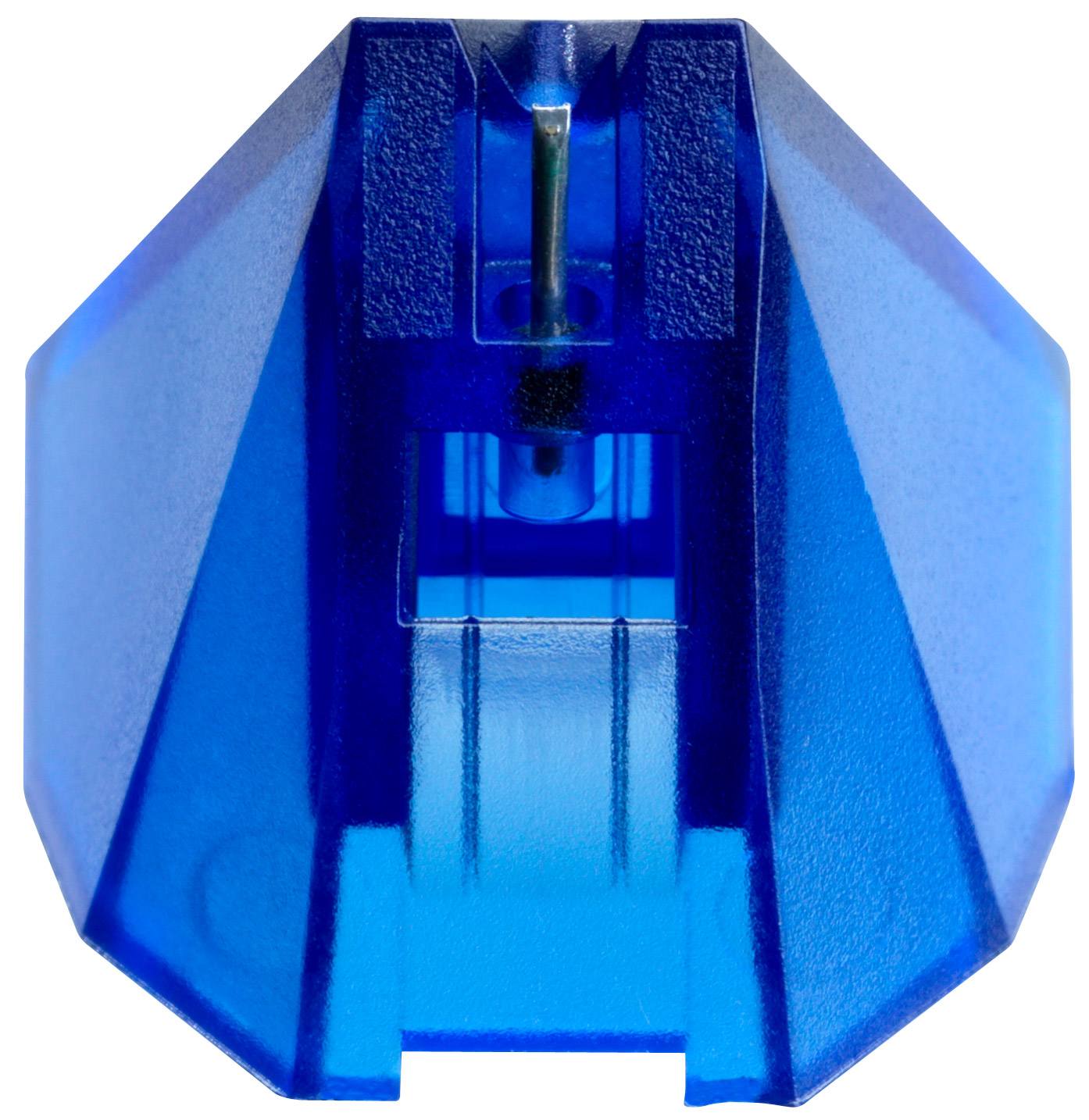

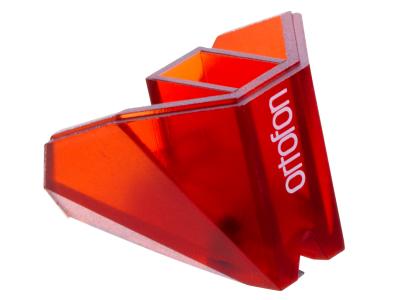

Special for 2M Red, 2M Blue and 2M Silver phono cartridges:
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.
|20-20.000 Hz + 3 / - 1 dB
|Tracking ability at 315Hz at recommended tracking force *)
|Compliance, dynamic, lateral
|Stylus tip radius
|r/R 8/18 µm
|Equivalent stylus tip mass
|Tracking force range
|1.6-2.0 g (16-20 mN)
|Tracking force, recommended
|1.8 g (18 mN)
|Recommended for following cartridges
|2M Silver, interchangeable with 2M Red and 2M Blue.
