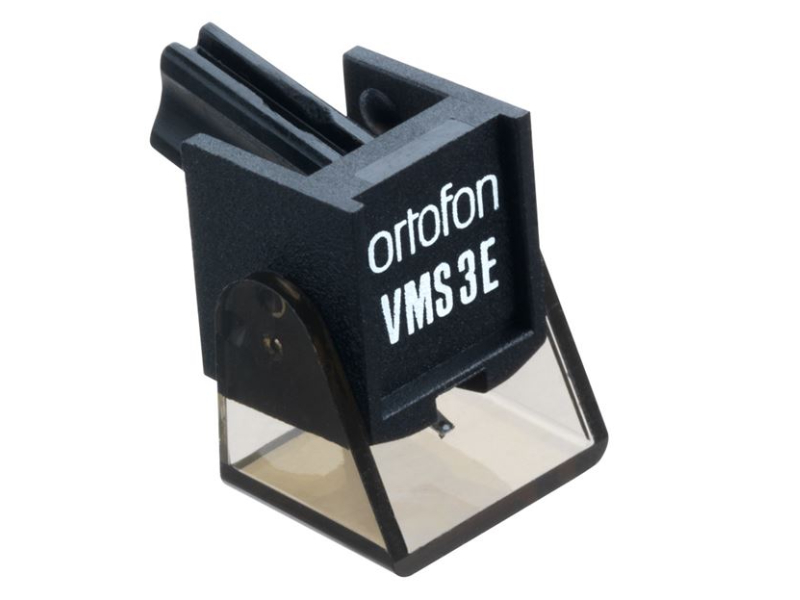

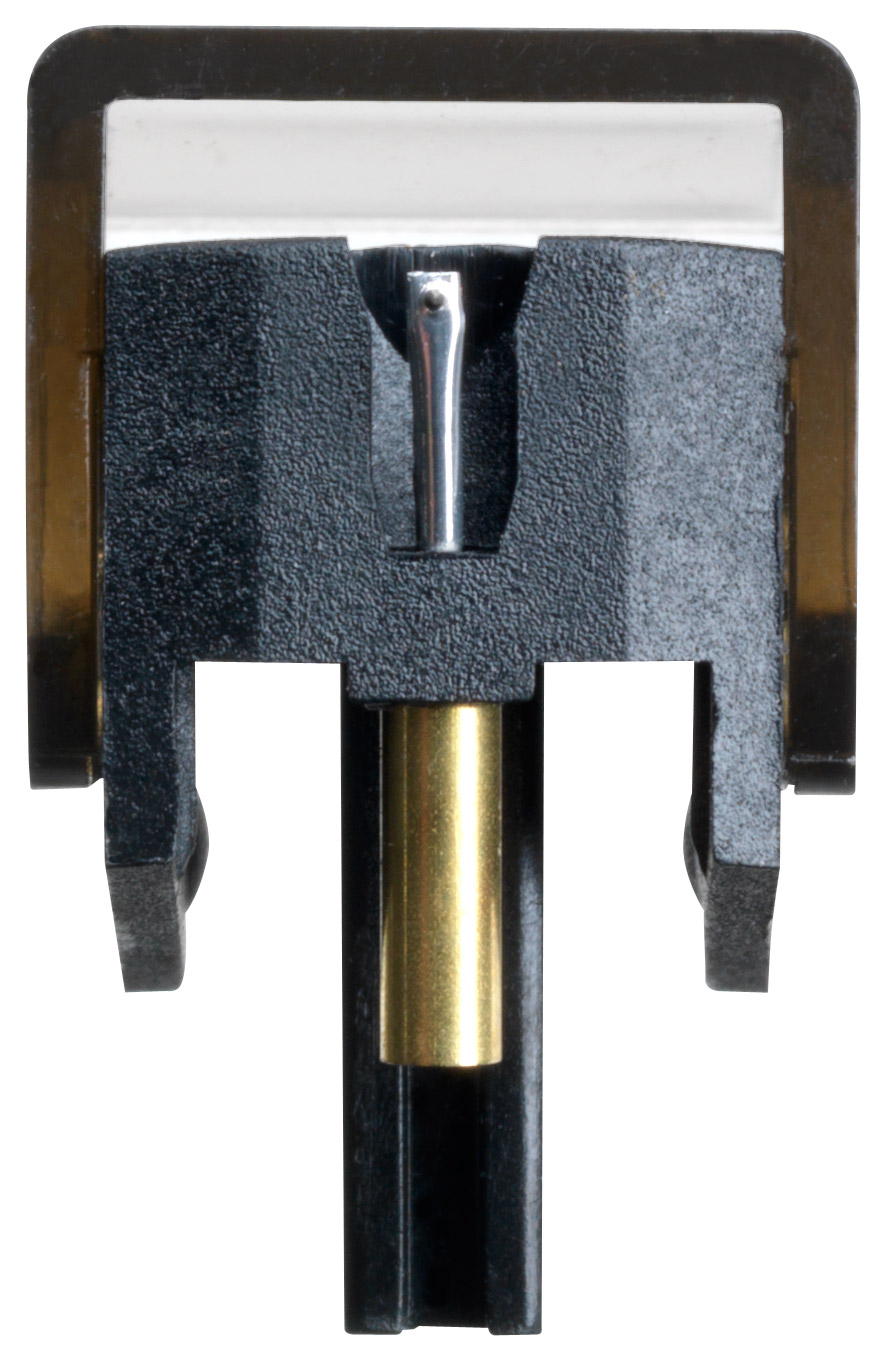

Ortofon Stylus For VMS 3E And FF 10XE Cartridges - Stylus D3e
| Specifications | |
|---|---|
| Frequency range | 20-22.000 Hz |
| Frequency response | 20-20.000 Hz + 2 / - 3 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 50 µm |
| Compliance, dynamic, lateral | 10 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0.65 mg |
| Tracking force range | 1.7-2.3 g (17-23 mN) |
| Tracking force, recommended | 2.0 g (20 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for | VMS 3E and FF 10 XE cartridges |
