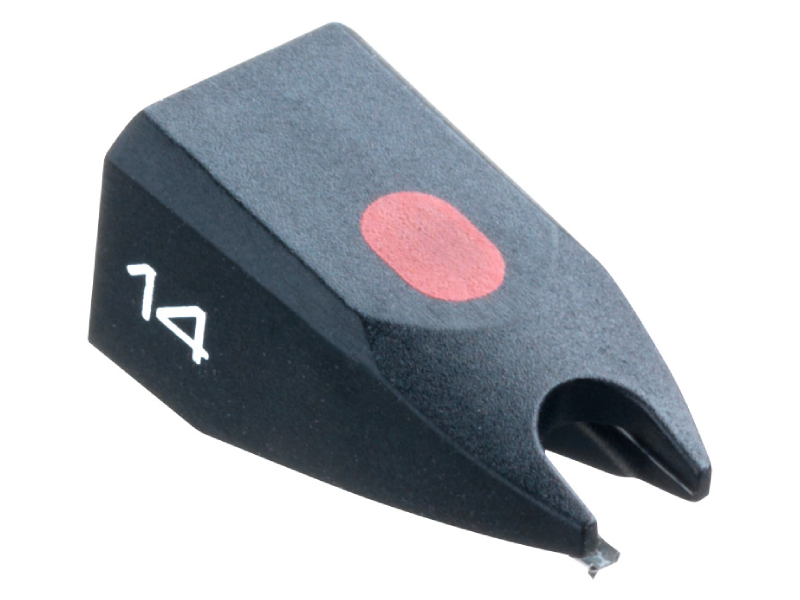

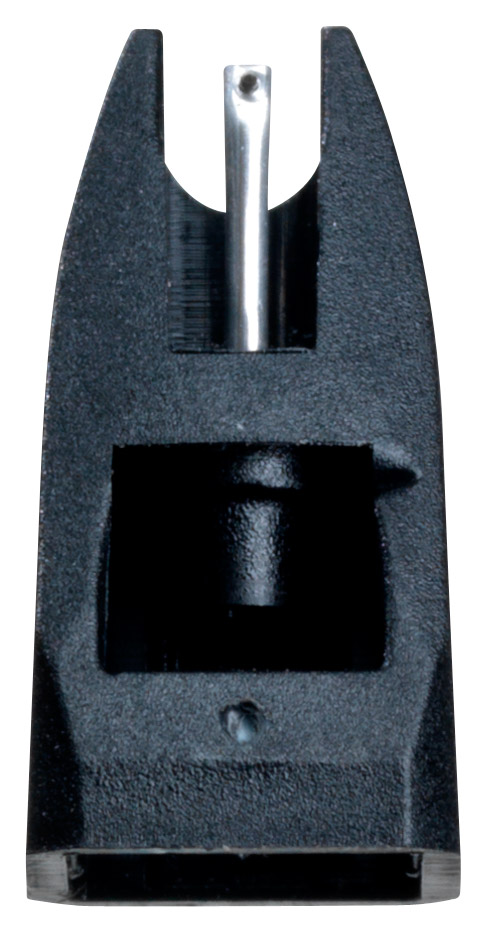

Ortofon Replacement Stylus - Stylus 14
| Specifications | |
|---|---|
| Frequency range | 20-22.000 Hz |
| Frequency response | 20-20.000 Hz + 2 / - 2 dB |
| Tracking ability at 315Hz at recommended tracking force*) | 70 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0.5 mg |
| Tracking force range | 1.0-1.5 g (10-15 mN) |
| Tracking force, recommended | 1.25 g (12.5 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for | TM 14U |
