Ortofon Budget Spherical Stylus Listening Cartridge - OM-5s

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Literature

For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet cartridges. Along with our well-regarded Moving Coil cartridges, Moving Magnet models have established a good reputation among music lovers and Hi-Fi enthusiasts the world over.

The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.

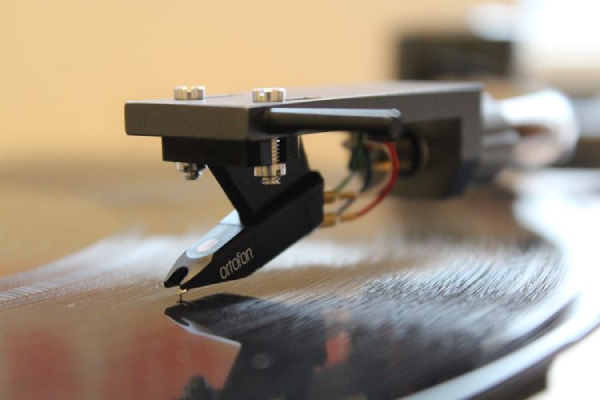

  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

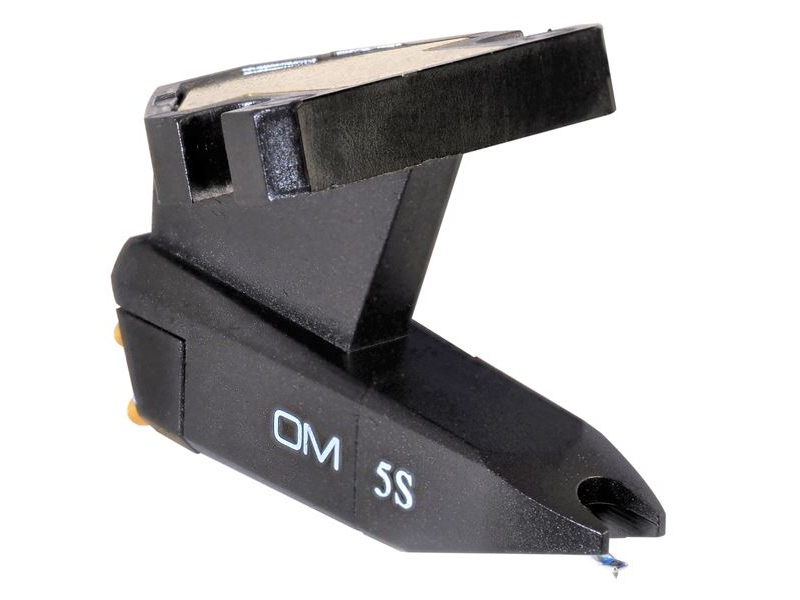

The OM 5S is a moving magnet cartridge for general purpose application

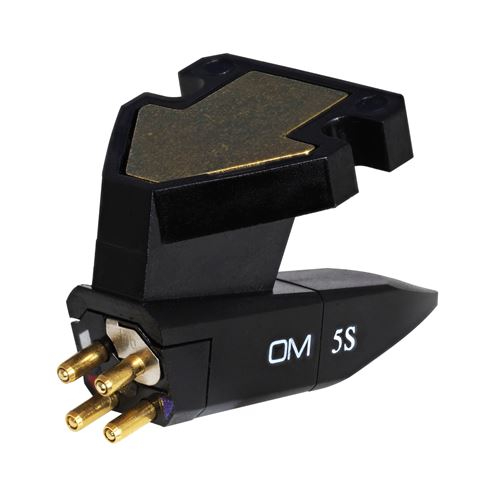

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.

The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records.

Styli types and interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application and budget.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus. Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

Specifications
Output voltage at 1000 Hz, 5cm/sec. 4.5 mV
Channel balance at 1 kHz2 dB
Channel separation at 1 kHz20 dB
Channel separation at 15 kHz12 dB
Frequency range at - 3dB 20-20.000 Hz
Frequency response20-22.000 Hz
Tracking ability at 315Hz at recommended tracking force *)60 µm
Compliance, dynamic, lateral20 µm/mN
Stylus typeSpherical
Stylus tip radiusR 18 µm
Tracking force range1.5-2.0 g (15-20 mN)
Tracking force, recommended1.75 g (17.5 mN)
Tracking angle20°
Internal impedance, DC resistance750 Ohm
Internal inductance450 mH
Recommended load resistance47 kOhm
Recommended load capacitance200-500 pF
Cartridge colour, body/stylusBlack/Black
Cartridge weight incl. extra weight5 g
Cartridge weight excl. extra weight2.5 g
Replacement stylus unitStylus 5S
