Literature

Design features

  • Our “no overall feedback” amplifier circuit design which results in the following: real-time amplification; more accurate musical reproduction with respect to tonality; non-existent transient intermodulation distortion; the elimination of common phase errors resulting from feedback.

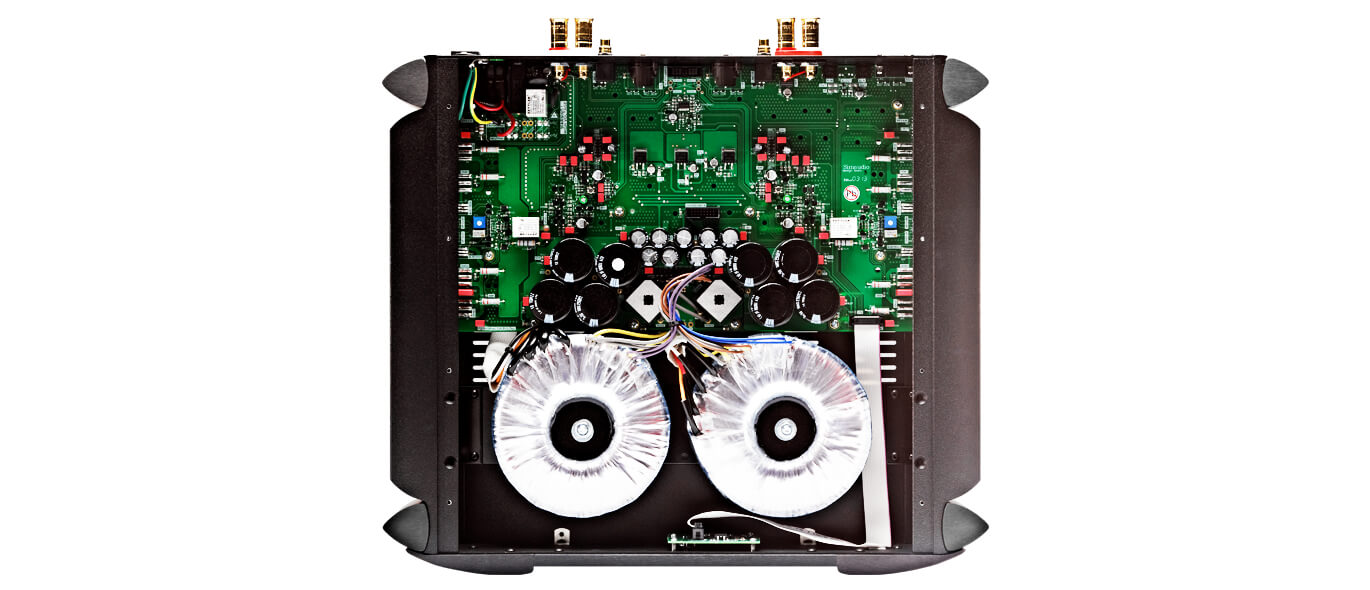

  • An oversized dual-mono power supply using a custom proprietary toroidal transformer design.
  • “Class A” power output to 5 watts for greater efficiency.

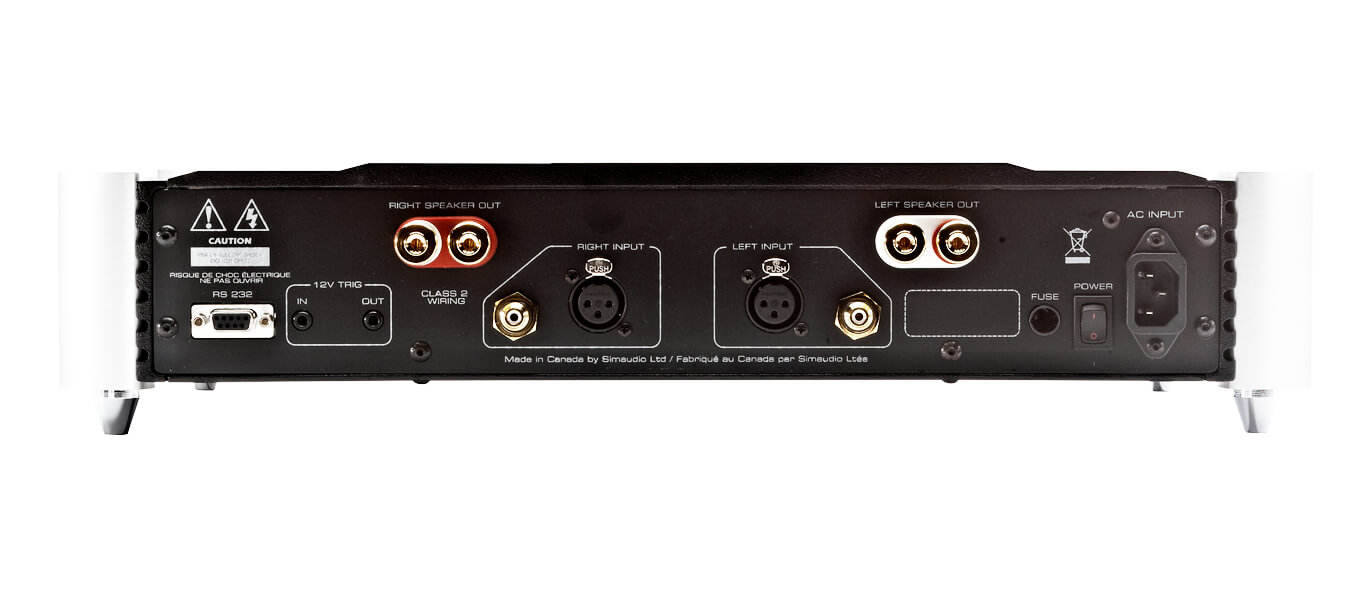

  • Full unsolicited RS-232 bidirectional feedback and 12 Volt trigger input/output for remote operation.
  • Self-diagnostic system that detects both over-heating and the presence of DC in the input signal.
Specifications
Output Power at 8Ω 130 W per channel
Output Power at 4Ω 260 W per channel
Output Power - Bridged Mono at 8Ω 500 W
Input Sensitivity 900mV RMS
Input Impedance 47,500Ω
Gain 31dB
Signal-to-noise Ratio 104dB @ full power
Frequency response (full range) 10Hz - 200kHz +0/-3.0dB
Crosstalk @ 1kHz -102dB
THD (20Hz - 20kHz @ 1 W) 0.015%
THD (20Hz - 20kHz @ 130 W) 0.04%
Intermodulation distortion 0.01%
Shipping weight 45 lb / 20 kg
Dimensions (width x height x depth) 18.75 x 4.0 x 18.1 in
