Subwoofer
ASW610's long-throw 250mm driver allows it to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool.

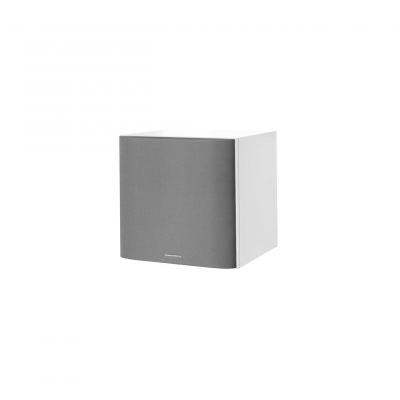

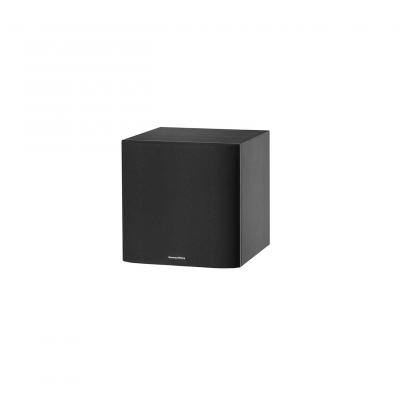

ASW610
Highly capable in a hi-fi or home theatre set-up
| Specifications | |
|---|---|
| Dimensions | Height: 310mm (12.2 in) not including feet or spikes 322mm (12.7in) including feet, 338mm (13.3in) including spikes Width: 310mm (12.2 in), Depth: 347mm (13.66in) not including grilles 375mm (14.8 in) including grilles and controls |
| Inputs | Line in (RCA Phono), Speaker in (Binding post), 12v trigger (3.5mm jack), Low-pass filter, Active 4th-order, variable cut-off frequency |
| Signal / noise | >90dB |
| Input impedance | 33kΩ |
| Power output | 200W |
| Rated power consumption | 40W / 0.5W standby |
| Bass extension | -6dB at 20Hz (position A), -6dB at 25Hz (position B), -6dB at 30Hz (position C) |
| Frequency range | -6dB at 20Hz and 25 / 140Hz adjustable (EQ at A) |
| Frequency response | ±3dB 27Hz – 40 / 140Hz adjustable (EQ at A) |
| Description | Active closed-box subwoofer system |
| Drive unit | ø250mm (10 in) paper / Aramid fibre cone long-throw |
| Features | Input level (line in), Input level (speaker in), Low-pass filter bypass, Bass extension, Bass roll-off alignment, Auto sense on / standby, Phase switch |
| Net weight | 12.5kg (27.6 lb) |
| Cabinet finishes | Black,White |
| Grille finishes | Black, Grey |
