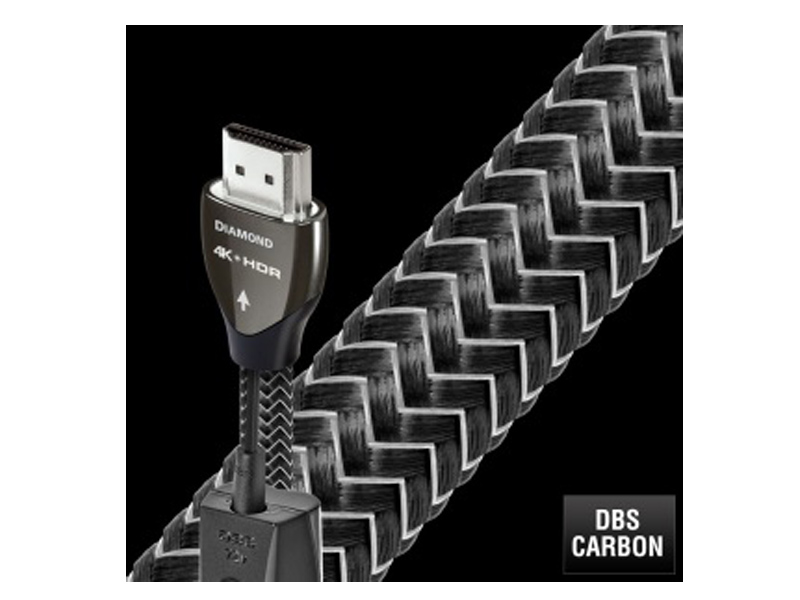

Diamond HDMI incorporates AudioQuest's highest-performance, lowest-distortion Perfect-Surface Silver conductors. Silver is known for its high conductivity and its "colorless" sonic presentation.
Available Lengths: 0.6m - 3m
SOLID 100% PERFECT-SURFACE SILVER (PSS) CONDUCTORS
Perfect-Surface Technology applied to extreme-purity silver provides unprecedented clarity and dynamic contrast. Solid conductors prevent strand interaction, a major source of cable distortion. Extremely high-purity Perfect-Surface Silver minimizes distortion caused by the grain boundaries that exist within any metal conductor, nearly eliminating harshness and greatly increasing clarity compared to OFHC, OCC, 8N and other coppers.
HARD-CELL FOAM INSULATION
Hard-Cell Foam (HCF) Insulation ensures critical signal-pair geometry.Any solid material adjacent to a conductor is actually part of an imperfect circuit. Wire insulation and circuit board materials all absorb energy. Some of this energy is stored and then released as distortion. Hard-Cell Foam Insulation is similar to the Foamed-PE used in our more affordable Bridges & Falls cables, and is nitrogen-injected to create air pockets. Because nitrogen (like air) does not absorb energy and therefore does not release any energy from or into the conductor, distortion is reduced. In addition, the stiffness of the material allows the cable's conductors to maintain a stable relationship along the cable's full length, producing a stable impedance character and further minimizing distortion.
HIGH SPEED DATA CAPACITY
HDMI standards and capabilities have improved significantly since DVI first evolved into HDMI. All generations are backward compatible. However, not all previous HDMI cables can transmit the full 18Gbps of data required to optimize today’s HDMI 2.0 equipment.While there is currently no 4K/60 4:4:4 software requiring the full 18Gbps capability of HDMI, some sources (UHD Blu-ray players) can be set to “up-sample”, requiring 18Gbps capability. Up-sampling often should be done in the TV rather than in a previous component — but that’s your decision.AudioQuest HDMI cables with "Exceeds 18 G bps" on the box front are guaranteed to exceed the requirements for all possible HDMI data streams.
CARBON-BASED 3-LAYER NOISE-DISSIPATION SYSTEM (NDS)
It's easy to accomplish 100% shield coverage. Preventing captured Radio Frequency Interference (RFI) from modulating the equipment's ground reference requires AQ's Noise-Dissipation System (NDS). Traditional shield systems typically absorb and then drain noise/RF energy to component ground, modulating and distorting the critical "reference" ground plane, which in turn causes a distortion of the signal. NDS's alternating layers of metal and carbon-loaded synthetics "shield the shield," absorbing and reflecting most of this noise/RF energy before it reaches the layer attached to ground.
DIELECTRIC-BIAS SYSTEM WITH RADIO FREQUENCY TRAP
All insulation between two or more conductors is also a dielectric whose properties will affect the integrity of the signal. When the dielectric is unbiased, dielectric-involvement (absorption and non-linear release of energy) causes different amounts of time delay (phase shift) for different frequencies and energy levels, which is a real problem for very time-sensitive multi-octave audio. The inclusion of an RF Trap (developed for AudioQuest’s Niagara Series of power products), ensures that radio frequency noise will not be induced into the signal conductors from the DBS field elements.(DBS, US Pat #s 7,126,055 & 7,872,195 B1)
All audio cables are directional. The correct direction is determined by listening to every batch of metal conductors used in every AudioQuest audio cable. All signal conductors controlled for digital-audio direction in AudioQuest HDMI cables, and care is even taken to run the conductors used in the Audio Return Channel in the opposite direction to ensure the best performance for that application. Arrows are clearly marked on the connectors to ensure superior sound quality.
|Metal||Solid 100% PSS Silver|
|Noise-Dissipation System||Carbon-Based 3-Layer Noise-Dissipation System|
|Jacket||Up to 3.0m: Braided|
|Type||0.6m to 15.0m (49 Feet) Carry Full HDMI 2.0 4K + HDR, 18Gbps|
