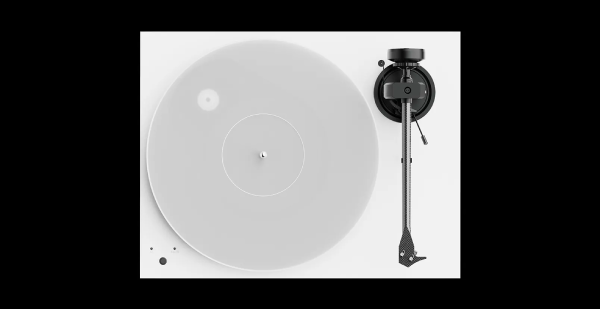

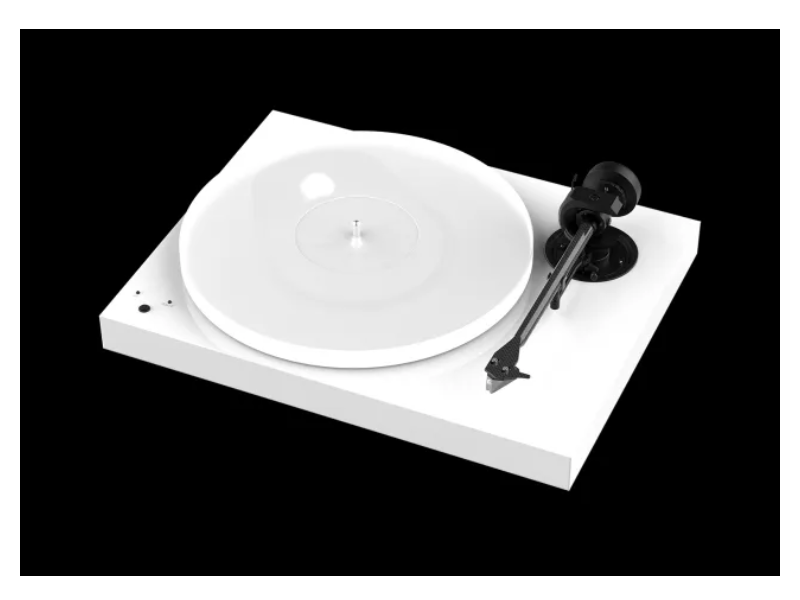

Project Audio X1 B Pick it S2 MM Turntable in Gloss White - PJ22293195

Discontinued
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Literature

Ready for the next step!

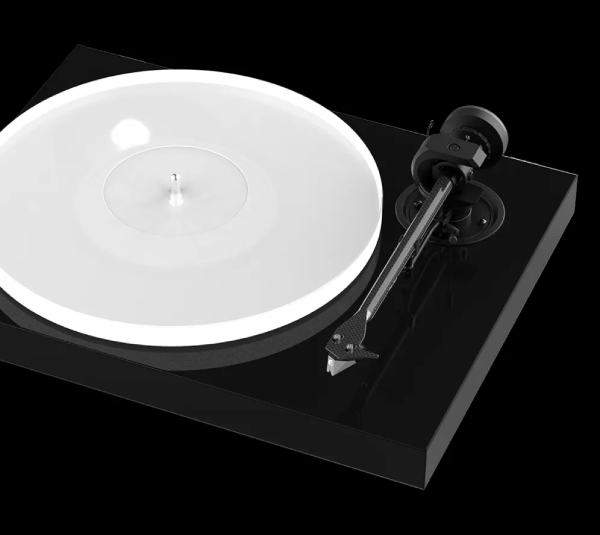

Welcome to a new generation of X-Line turntables



True Balanced

Unleash the full power

Simply upgrade your X1 B to a MC cartridge, connect it with one of our new True Balanced Phono Cables to your phono preamp and benefit from an interference-free signal with increased dynamics & lower noise level.

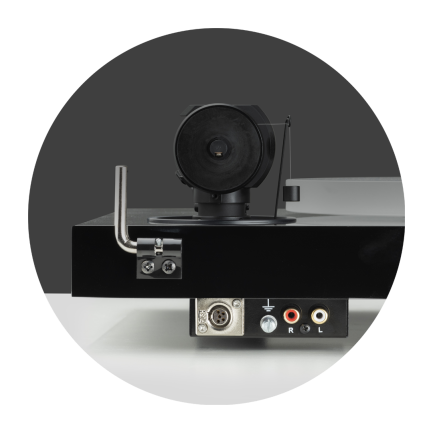

Mini XLR Output

One cable connects it all

We offer a wide range of balanced phono cables with different connectors to fit all our phono preamps. If you want to use your X1 B with a Phono Box S3 B you need a „Connect it Phono Mini XLR / Mini XLR“.

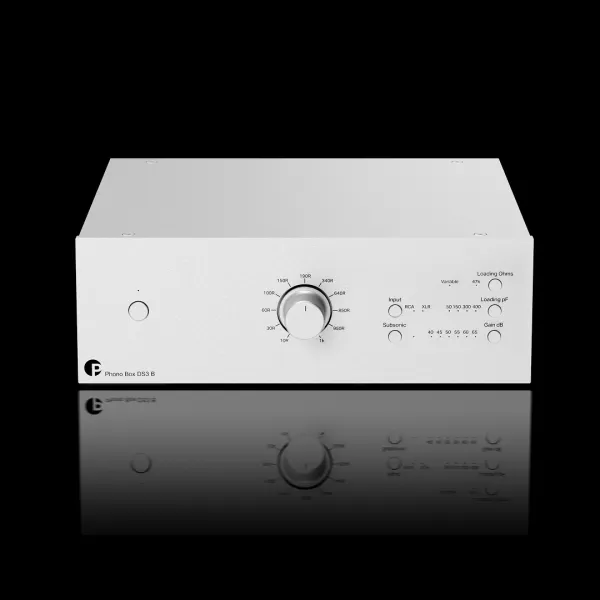

Balanced Preamps

A perfect match!

Pair your X1 B with one of our new balanced Phono Boxes and benefit from a fully balanced signal transmission to your phonp preamplifier. Check out our new Phono Box S3 B & DS3 B for further information.




8,6'' Carbon-Aluminium Tonearm

Finished as a one-piece, with no resonance-inducing headshell, the X1 is available with premounted high quality Pick it S2 MM cartridge. Its superstiff and perfectly damped construction provides a perfect tracking of the record groove.

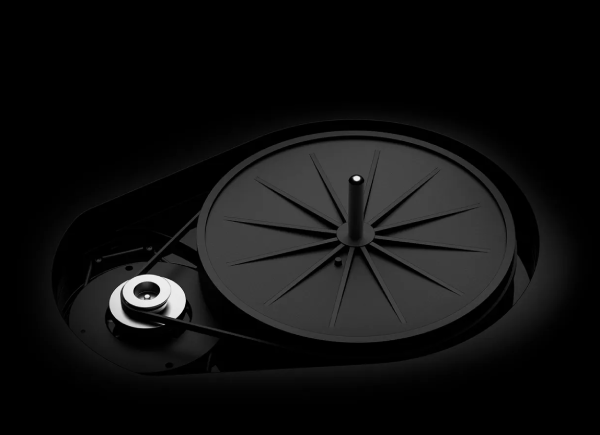

Motor suspension

Stainless steel platter-bearing with soft brass bushing and teflon mirrors together with a new motor suspension for better decoupling of the motor vibrations to tonearm and chassis ensure lowest rumble and noise.



Real high-end features.

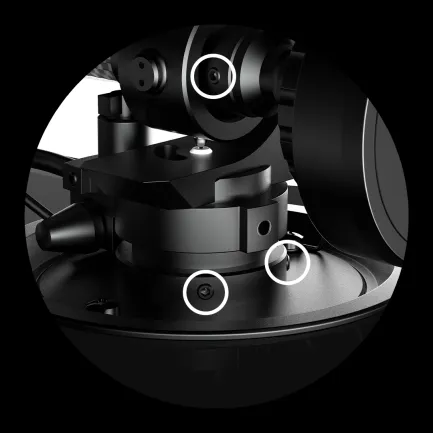

Azimuth & VTA

Fully adjustable

The X1 comes with fully adjustable Azimuth & VTA. It offers you the possibility to modify your X1 as you want it.

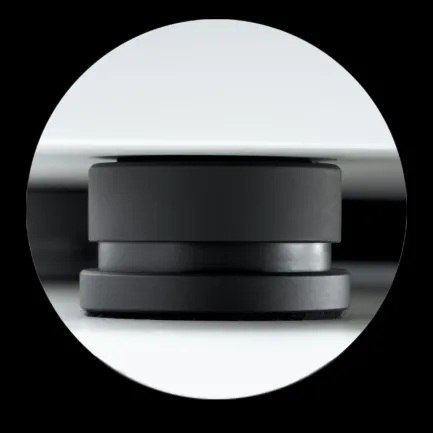

Metal Feet

Damped & height adjustable

The three height adjustable damped aluminium feet guarantee the perfect stand & massively reduce risk of acoustical feedback.

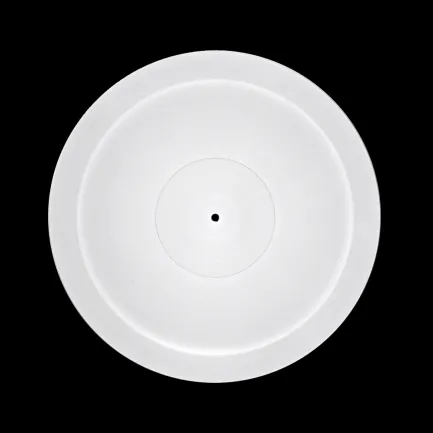

1,5 kg Platter

Resonance free acryl

The perfect platform to place your precious vinyl records, guaranteeing absolute reliability in its performance and sonic character.

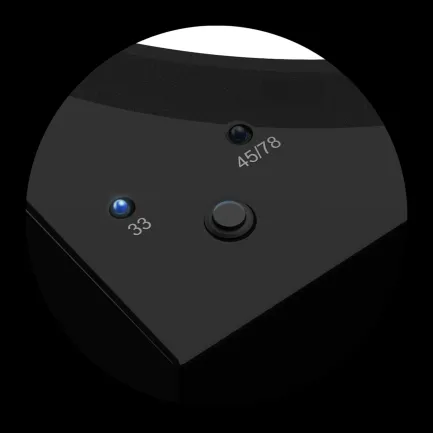

33/45/78 RPM

High precision motor control

A sophisticated DC/AC generator board generates clean and stable power to drive the motor. Easily change speed with the push of only a single button.



Technical Specifications
Weight7 kg net / 9.5 kg gross weight
Dimensions415 x 125 x 335 mm (WxHxD)
Power consumption5,0 watts max /< 0.3 watt standby
Included accessories15volts DC /0,8A power supply, Dust cover, Connect it E Phono cable, feltma
Tracking force range0 - 30mN
Effective tonearm mass10,0g
Effective arm length218,5 mm
Overhang18 mm
Tonearm8,6” carbon/aluminium sandwich
Main bearingstainless steel/brass
Platter20mm thick, 1.5 kg heavy acryl
Wow & flutter33: 0.15% 45: 0.13%
Speed variance33: 0.30% 45: 0.25%
Principlebelt drive
Speed33, 45, 78 (electronic speed change)
