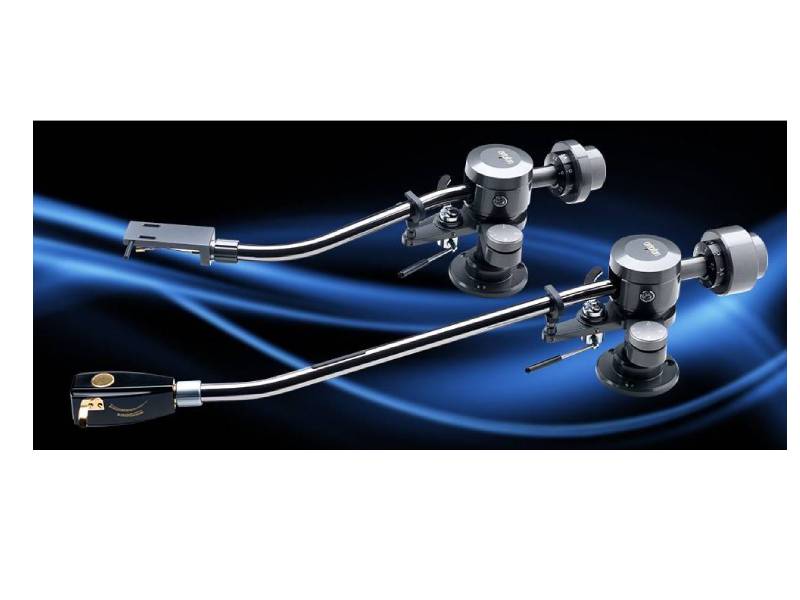

TA-110 has gone to the next level by reducing unwanted vibrations in the tonearm. Ortofon's material know-how is the first area of the Ortofon technology that was applied when developing the TA-110. As a specialist in technical rubber, Ortofon used one of its special rubber compounds when creating the specially shaped rubber with high vibration dampening properties. The rubber pieces are produced at the Ortofon technical rubber facilities in Nakskov.
The second area of Ortofon technology is the extensive knowledge of vibration properties and characteristics. Ortofon has acquired this know-how via the developement of Bone Conductors for hearing aid industry. By using this knowledge and the related computer programs that simulated vibration in different shapes and materials, Ortofon came up with an optimized TA-110.
Features
| Specifications | |
|---|---|
| Effective mass without headshell: | 3.5 g |
| Mass of supplied headshell: | 15.5 g |
| Effective armlength (distance between the stylus and pivot point): | 231.0 mm |
| Mounting distance (distance between the pivot point and turntable center): | 213.0 mm |
| Offset angle: | 23.9 degrees |
| Overhang: | 18.0 mm |
| Tracking force adjusting range direct reading: | 0-3 g |
| Tracking force adjusting range with extra mass ring mounted: | 0-4 g |
| Height adjustment range: | 35-55 mm |
| Diameter of the armbase mounting hole: | 19-20 mm |
| Diameter of the center shaft of tonearm: | 18.0 mm |
| Inner null point: | 66 mm |
| Outer null point: | 120.9 mm |
| Headshell LH-2000E included, weight: | 15.5 g |
| TA-110 total weight including headshell: | 470 g |
| Extra mass ring for heavier cartridges included, weight | 45 g |
