Ortofon Replacement Stylus For OM-5e - Stylus 5e

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Literature

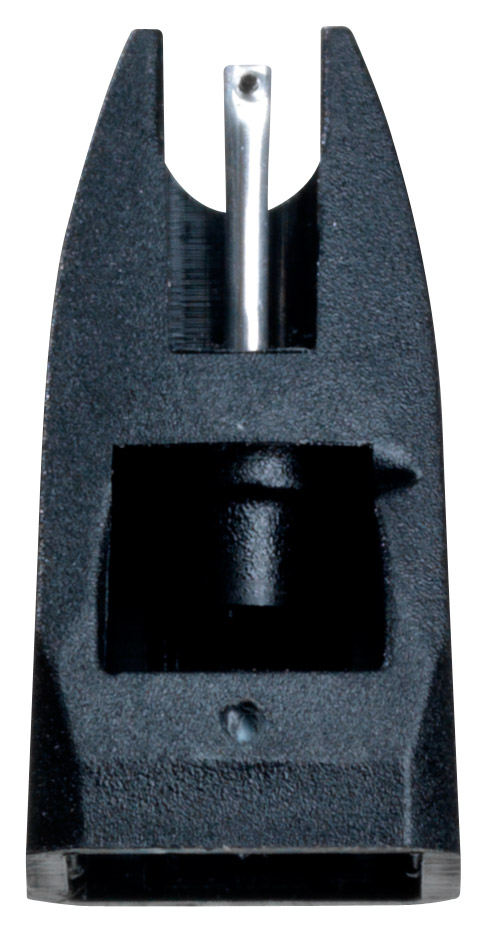

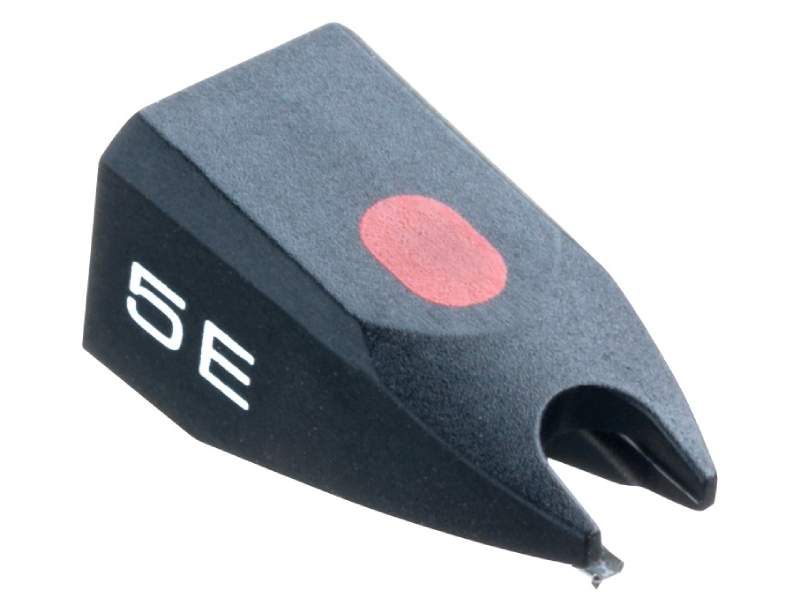

Ortofon Replacement Stylus For OM-5e - Stylus 5e

Specifications
Frequency range20-25.000 Hz
Frequency response20-25.000 Hz
Tracking ability at 315Hz at recommended tracking force *)65 µm
Compliance, dynamic, lateral20 µm/mN
Stylus typeElliptical
Stylus tip radiusr/R 8/18 µm
Equivalent stylus tip mass0.5 mg
Tracking force range1.5-2.0 g (15-20 mN)
Tracking force, recommended1.75 g (17.5 mN)
Tracking angle20°
Stylus colourBlack
Recommended for OM 5E, Super OM 5, OMP 5E, OMB 5E, OMT 5E
