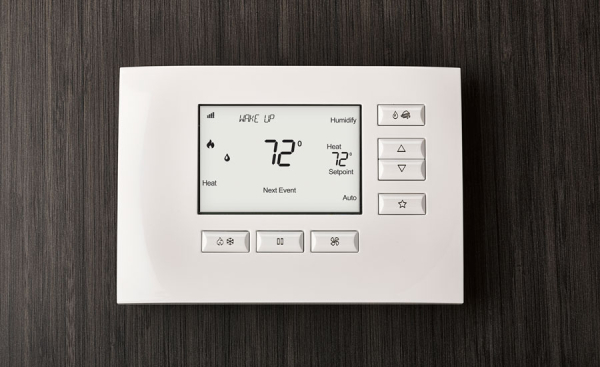

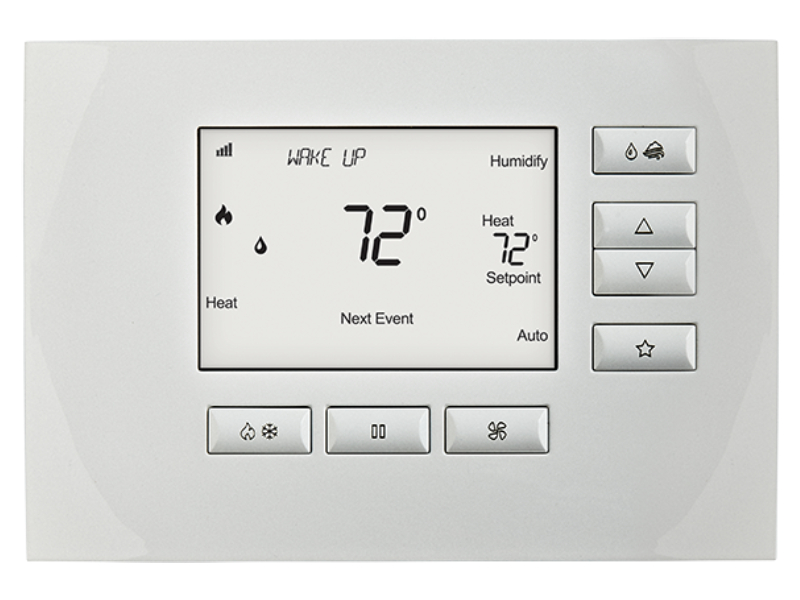

The Control4 Wireless Thermostat by Aprilaire was jointly developed with the climate control experts at Aprilaire to deliver a reliable and sophisticated thermostat that consistently delivers the right level of comfort in the most efficient way possible. With advanced presets and scheduling, the thermostat works with your customers instead of forcing them to fit climate control into a rigid schedule.
FEATURES
| Electrical | |
|---|---|
| Operating voltage | 24VAC (19.2~28.8VAC) |
| Current | Maximum: 2.5A (total), 1.0A (single output), Maximum surge current: 5A |
| Power supply | Dual power. Can be battery- or 24VAC-powered. When both sources are available, the battery is used as backup power. |
| Battery power | Battery power: AA size alkaline battery × 4, Battery life: Approximately 12 months |
| Network | |
| Control communications | ZigBee (IEEE 802.15.4), 2.4 GHz mesh networking |
| Environment | |
| Temperature | Operating: 32° to 120°F (0° to 48.9°C), Shipping: -30° to 150°F (-34.4° to 65.5°C) |
| Relative humidity | Operating: 5% to 90% R.H. (non-condensing) |
| Dimensions (W × H × D) | 6.5" × 4.5" × 1" (164 × 114 × 25 mm) |
| Thermal | |
| Outdoor and remote temperature sensor | Maximum distance: 300 feet (about 100 meters) |
| Room temperature measurement | Display range: 32° to 99°F (0° to 40°C) |
| Outdoor temperature measurement | Display range: -40° to 130°F (-40° to 55°C) |
| Setpoint temperature range | Heat: 40° to 90°F (4° to 32°C), Cool: 50° to 99°F (10° to 37°C) |
| Setpoint humidity range | Humidification: 10% to 50% R.H. Dehumidification: 40% to 90% R.H. |
