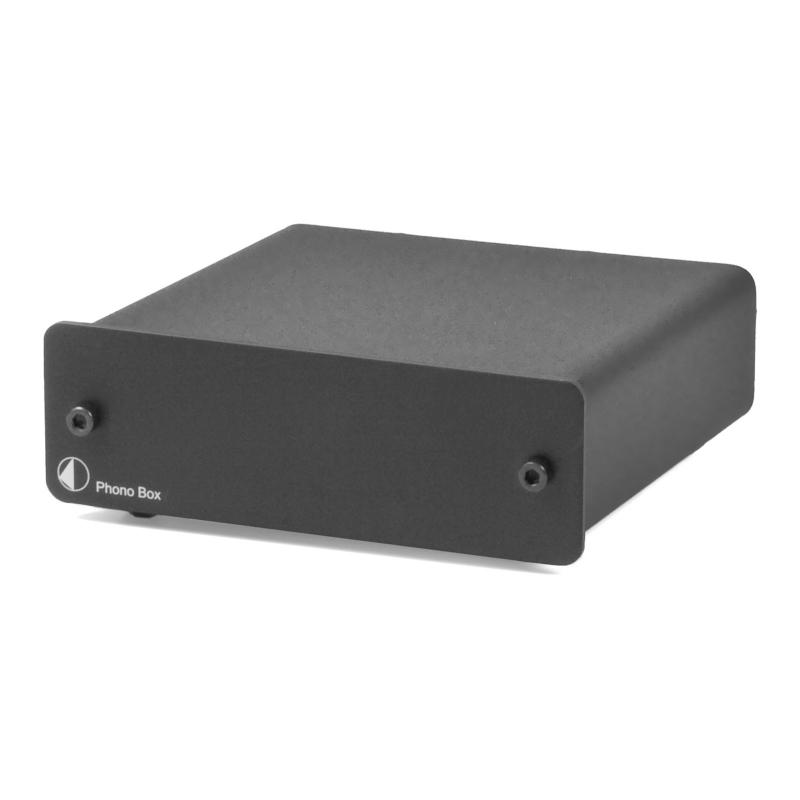

Phono Box: Best buy classic for pure vinyl listening pleasure!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,…) of your amplifier.
Features
Specifications | |
---|---|
Weight | 570 g |
Dimensions W x H x D | 103 x 36 x 104 (115 mm with sockets) |
Outboard power supply | 18V / 200 mA DC, suitable for your country's mains supply |
Standby power consumption | < 1 watts |
RIAA-equalisation curve accuracy | 20 Hz - 20 kHz / max. 0,5 dB |
THD, MC | 0,05% |
THD, MM | 0,01% |
Noise floor, MC | 75 dBA |
Max. output | 9.5V (1kHz) |
Noise floor, MM | 94 dBA |
Gain, MC | 60 dB |
Output voltage typically | 300 mV / 1 kHz at 0,3mV/1 kHz (MC input) |
Gain, MM | 40 dB |
Output voltage typically | 300 mV/1 kHz at 3 mV/1 kHz (MM input) |
Input impedance, MC | 100 ohms / 120 pF |
Input impedance, MM | 47 kohms/120 pF |
