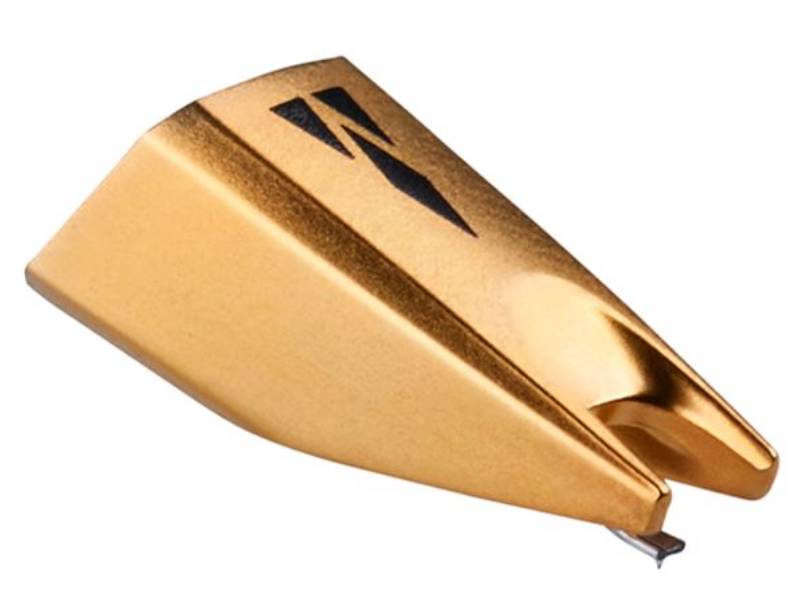

Ortofon Replacement Stylus for Concorde Elite - Stylus Elite
Specifications | |
---|---|
Output voltage | 1000 Hz, 5cm/sec. - 8,5 mV |
Channel balance | 1 kHz - 1 dB |
Channel separation | 1 kHz - 25 dB |
Channel separation | 15 kHz - 15 dB |
Frequency range | -3 dB - 20 – 20,000 Hz |
Tracking ability at 315Hz at recommended tracking force | 100 μm |
Compliance, dynamic lateral | 13 μm/mN |
Stylus type | Nude Elliptical |
Stylus tip radius | r/R 8/18 μm |
Tracking force range | 2.0-4.0 g |
Tracking force recommended | 3.0 g |
Tracking angle | 20° |
Concorde cartridge weight | 18.5 g |
