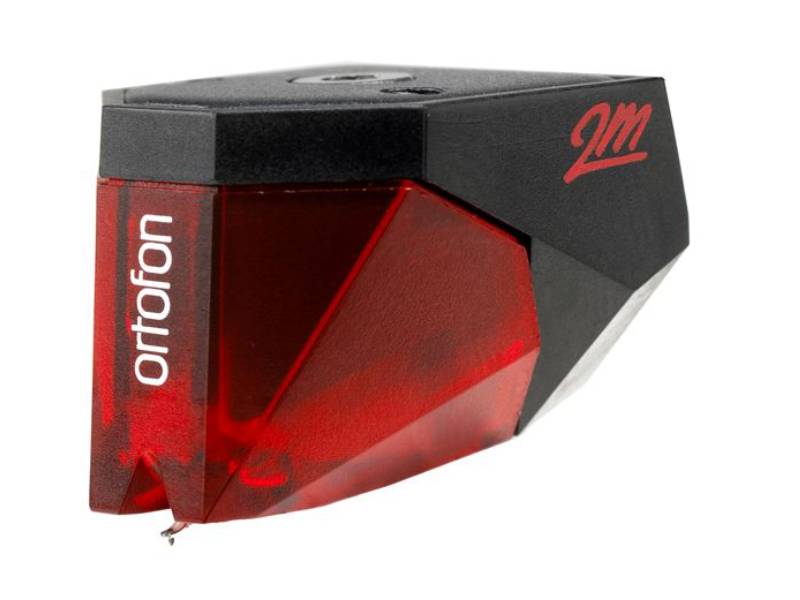

Ortofon 2m Red Moving Magnet Cartridge - 2M Red

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Literature

2M Red Technical data

  • Output voltage at 1000 Hz, 5cm/sec.  -  5.5 mV
  • Channel balance at 1 kHz   -  1.5 dB
  • Channel separation at 1 kHz  -  22 dB
  • Channel separation at 15 kHz  -  15 dB
  • Frequency range at - 3dB  -  20-22.000 Hz
  • Frequency response  -  20-20.000 Hz + 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force  -  70 µm
  • Compliance, dynamic, lateral  -  20 µm/mN
  • Stylus type  -  Elliptical
  • Stylus tip radius  -  r/R 8/18 µm
  • Tracking force range  -  1.6-2.0 g (16-20 mN)
  • Tracking force, recommended  - 1.8 g (18 mN)
  • Tracking angle  -  20°
  • Internal impedance, DC resistance  -  1.3 kOhm
  • Internal inductance  -  700 mH
  • Recommended load resistance  -  47 kOhm
  • Recommended load capacitance  -  150-300 pF
  • Cartridge colour, body/stylus  -  Black/Red
  • 2M standard and 2M Verso cartridges weight  -  7.2 g
  • 2M PnP MkII cartridge with integrated headshell weight  -  20 g
  • 2M PnP MkII cartridge with integrated headshell length - 52 mm
  • Replacement stylus unit  -  2M Red (interchangeable with 2M Blue and 2M Silver)

Features:

  • an improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy
  • a tipped Elliptical diamond and split pole pins with a copper wire
  • the cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

Specifications
Output voltage at 1 kHz, 5 cm/sec5.5 mV
Frequency range at -3 dB 20–22,000 Hz
Tracking ability at 315 Hz at recommended tracking force70 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptica
Tracking force recommended1.8 g (18 mN)
Load resistance47 kOhm
Load capacitance150–300 pF
