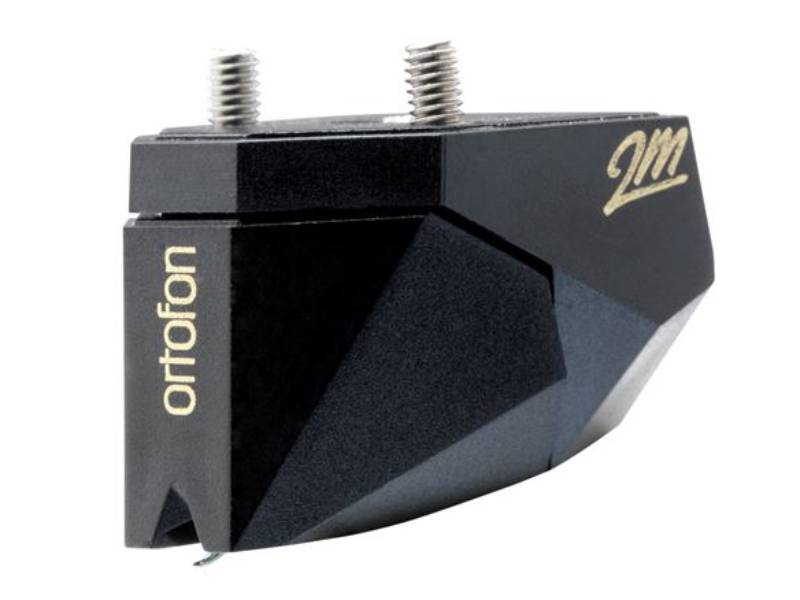

Ortofon 2M Black Verso Moving Magnet Cartridge - 2M Black Verso

Ortofon 2M Black Verso Moving Magnet Cartridge - 2M Black Verso

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Call for Pricing
(416) 665-0749

Literature

The 2M Black Verso model is an alternative product for bottom mount headshells

How to replace M2,0 mm screws on 2M Black Verso

  1. Remove the stylus with the stylus protection guard from the cartridge body to avoid any damage to the diamond.
  2. Using Torx 8 key, unscrew the black screw from the Verso top plate.
  3. Remove the top plate from the cartridge body by pulling the screws off.
  4. Remove the two countersunk screws from the top plate.
  5. Insert the two M2,0 mm screws in the top plate.
  6. Mount the top plate on the cartridge body. Hold the top plate with screw-threads hanging down and turn the cartridge body 180 degrees. Mount from above.
  7. Mount the black screw in the top plate and tighten with appropriate force.
  8. Mount the cartridge on the tonearm using the enclosed tool.
  9. Mount the stylus with the stylus protection guard on the cartridge body.

2M Black Verso accessories included the package:

  • 1 x Stylus brush, carbon fibre
  • 1 x Allen key Torx 6
  • 1 x Allen key Torx 8
  • 2 x Screw M2,0 x 6
  • 1 x Stylus pressure gauge
  • 1 x Socket spanner
Specifications
Output voltage at 1 kHz, 5 cm/sec.5 mV
Frequency range at -3 dB20–31,000 Hz
Tracking ability at 315 Hz at recommended tracking force80 µm
Compliance, dynamic, lateral22 µm/mN
Stylus typeNude Shibata
Tracking force recommended*1.5 g (15 mN)
Load resistance*47 kOhm
Load capacitance*150–300 pF
