Rotel Multi Room Hi-fi Amplifier in Black - C8+

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Literature

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm loads.

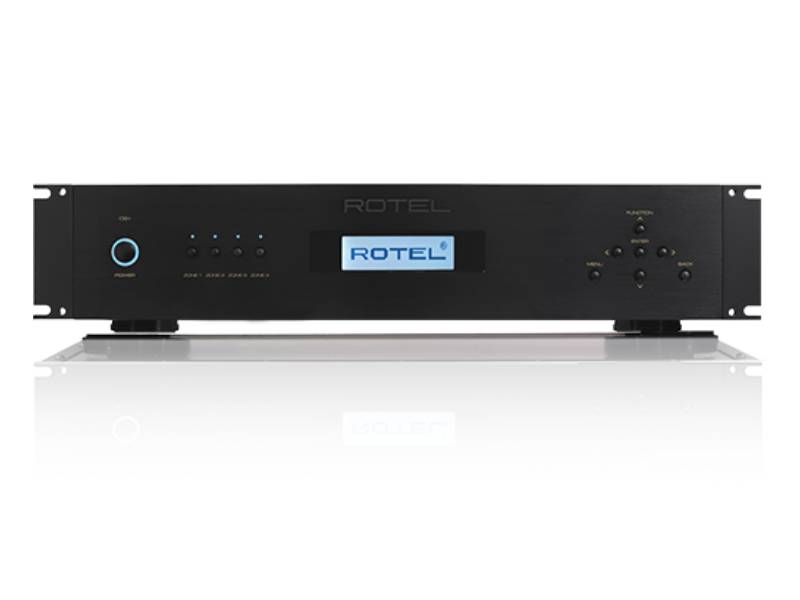

The C8+ includes 4 Analog and 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings.  The custom 2U height requires no top or bottom clearance when rack mounting.

Engineered with care.


  • DIMENSIONS (W × H × D): 430 × 97 × 414mm ,17" × 3.9" × 16.3"
  • FRONT PANEL HEIGHT: 2U / 88.1mm (3.5")
  • POWER REQUIREMENTS: 120V, 60Hz
  • POWER CONSUMPTION: 980W
  • STANDBY POWER CONSUMPTIONNormal: <0.5W
  • Network Standby: <2W
  • NET WEIGHT: 18.35kg (40.79lbs.)
  • BTU RATING (4Ω, 1/8th power)2744 BTU/h

MAXIMUM POWER OUTPUT

  • 150W/Ch (8 channels driven, 4Ω)

CONTINUOUS POWER OUTPUT

  • 100W/Ch (8 channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)

  • <0.1%

FREQUENCY RESPONSE

  • Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
  • Digital Inputs: 10Hz - 20kHz, 0 ± 0.5dB

S/N RATIO (IHF "A" Weighted)

  • Line Level Inputs: 100dB
  • Digital Inputs: 102dB

Product Description

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm speakers utilizing Rotel’s proprietary amplification technology.

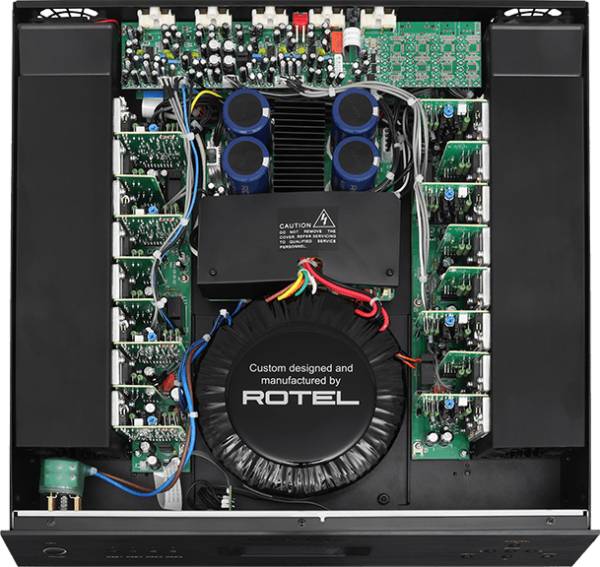

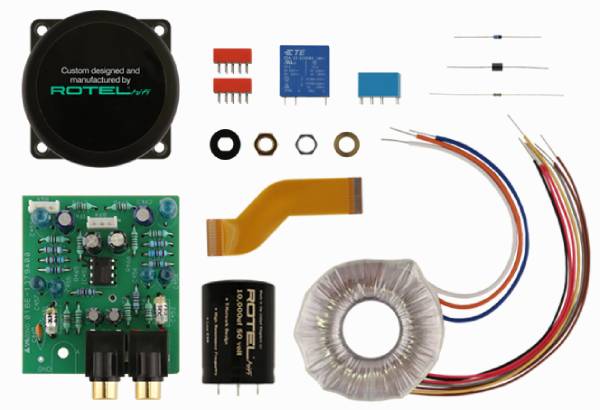

The oversized in-house manufactured toroidal transformer drives thirty-two output devices for effortless, controlled bass energy.

For ultimate installation flexibility the C8+ includes 4 Analog, 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings.

Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.

The custom 2U height requires no top or bottom clearance when rack mounting.

The C8+ is available in black only.

Specifications
TONE CONTROLS± 10dB at 100Hz / 10kHz
DAMPING FACTOR (20Hz - 20kHz, 8Ω)80
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)<0.1%
INPUT IMPEDANCE
Digital Inputs: 75Ω
Line Level Inputs: 31kΩ
INPUT SENSITIVITY
Digital Inputs:-13.5dBfs
Line Level Inputs: 0.43V
Specifications
CROSSTALK / SEPARATION>50dB
DIGITAL TO ANALOG CONVERTERSTexas Instruments
INPUT OVERLOADLine Level Inputs (RCA): 2.8V
OPTICAL DIGITAL SIGNALSSPDIF LPCM (up to 192kHz/24-bit)
