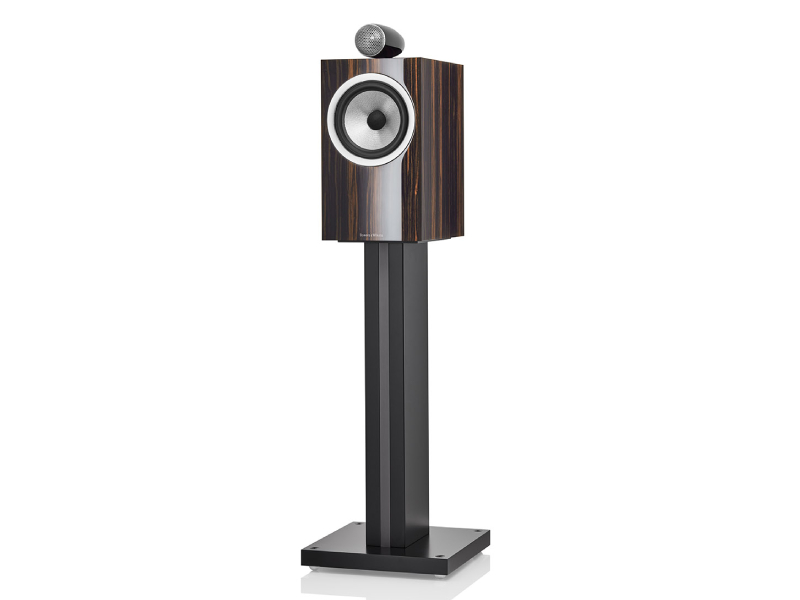

705 Signature

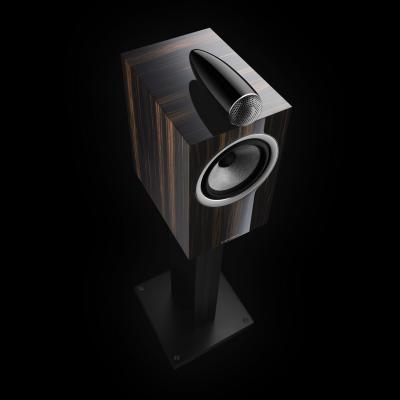

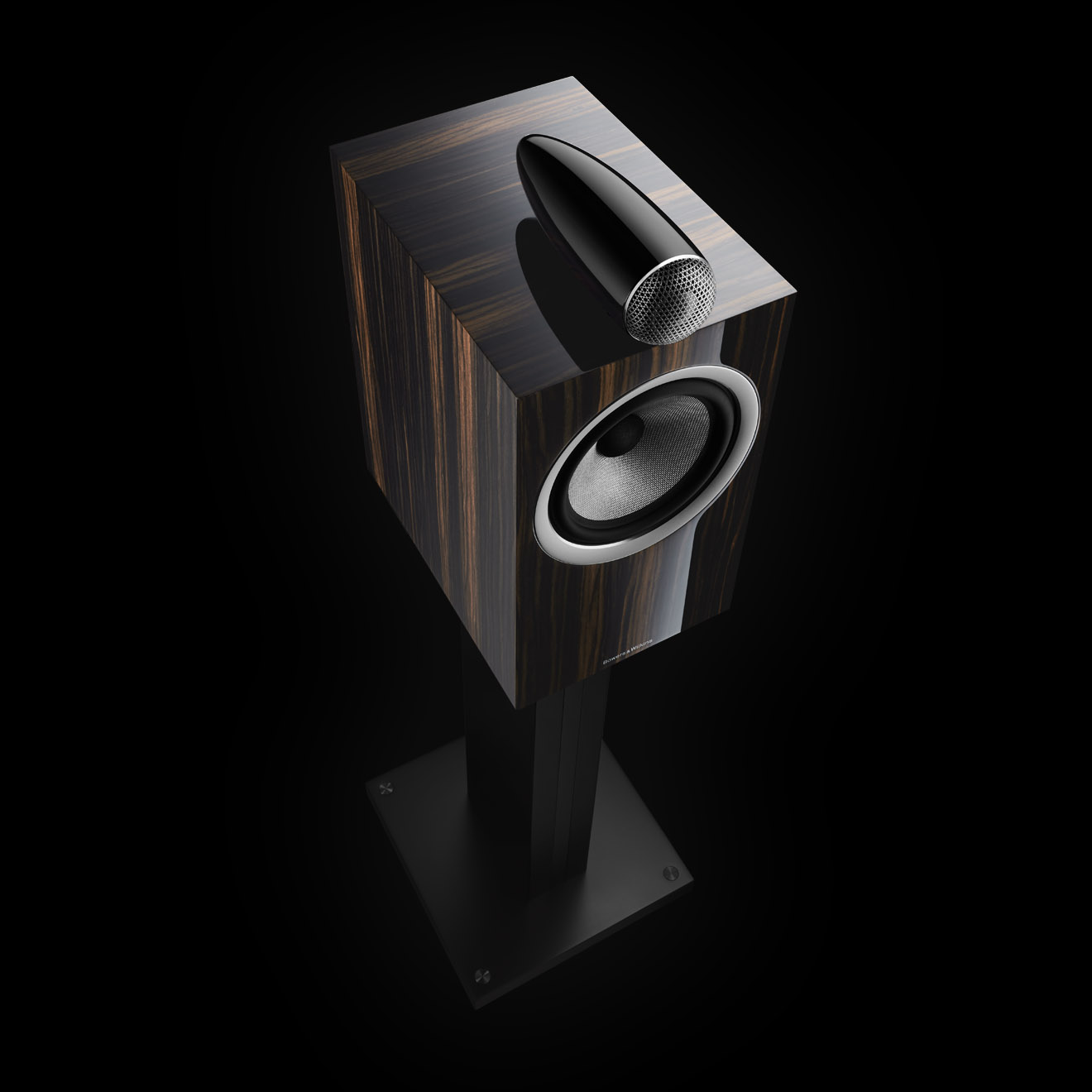

The 705 Signature stand-mount speaker features optimised crossovers, a Continuum cone mid/bass driver and a Carbon Dome tweeter housed in Solid Body Tweeter-on-Top enclosure.
705 Signature
Our most compact Tweeter-on-Top model gets the Signature treatment.
Crafted. Honed. Perfected.
Featuring the Continuum cone and Carbon Dome, this compact stand-mount loudspeaker is finished in exclusive Datuk Gloss and features optimised crossovers, making it worthy of the Signature nameplate.

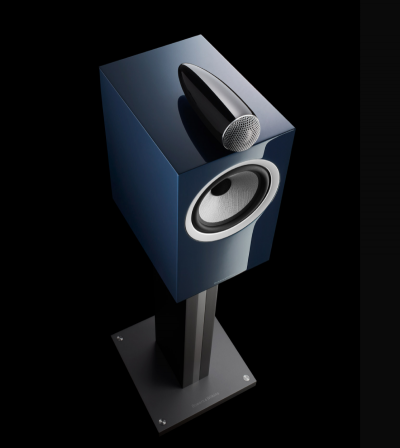

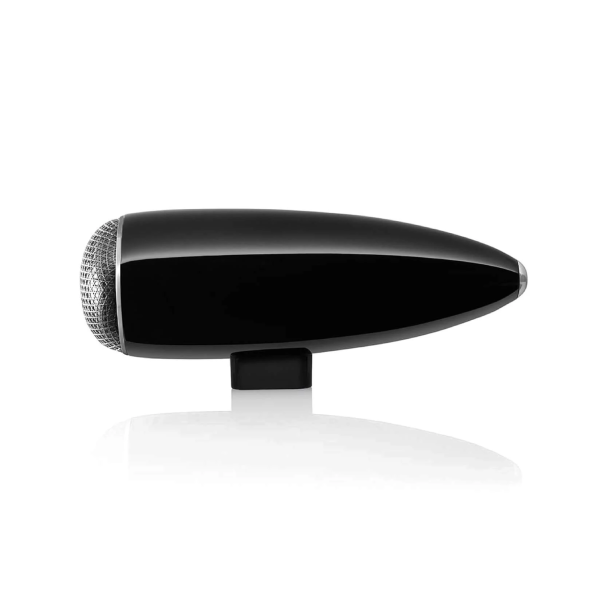

Optimised tweeter housing
Milled from a solid block of aluminium, the Solid Body Tweeter housing design creates an acoustically optimised housing that is exceptionally inert and resistant to resonances.

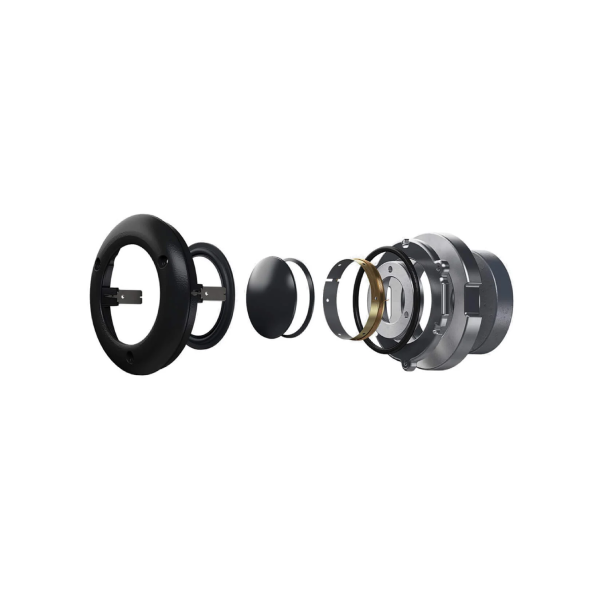

Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series and deliver pinpoint imaging accuracy and detailed insight into your music.

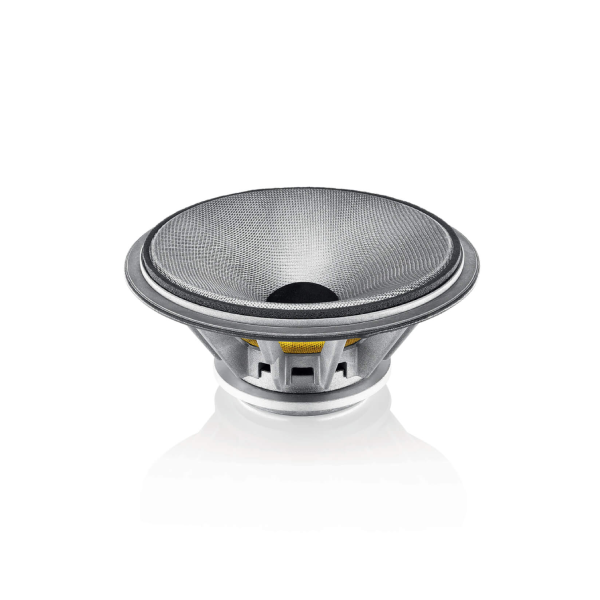

Truly amazing sound
Voices and instruments are delivered with purity and precision, thanks to the smooth, accurate Continuum cone mid-bass driver.
Size & Weight | |
---|---|
Dimensions | Height: 340mm (13.4 in) cabinet only , 407mm (16 in) including tweeter |
Dimensions | Width: 200mm (7.8 in) |
Dimensions | Depth: 285mm (11.2 in) cabinet only, 301mm (11.9 in) including grille and terminals |
Net weight | 9.3kg (20.5 lb) |
TECHNICAL DETAILS | |
Technical features | Decoupled Carbon Dome tweeter Solid Body Tweeter-on-Top Continuum™ cone bass/ midrange Flowport™ |
Description | 2-way vented-box system |
Drive units | 1x ø25mm (1 in) Carbon Dome high-frequency , 1x ø165mm (6.5 in) Continuum cone bass / midrange |
Frequency range | -6dB at 45Hz and 33kHz |
Frequency response | 50Hz - 28kHz ±3dB |
Sensitivity | 88dB spl (2.83Vrms, 1m) |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) <1% 100Hz - 22kHz <0.5% 150Hz - 20kHz |
Nominal impedance | 8Ω (minimum 3.7Ω) |
Recommended amplifier power | 30W - 120W into 8Ω on unclipped programme |
FINISHES | |

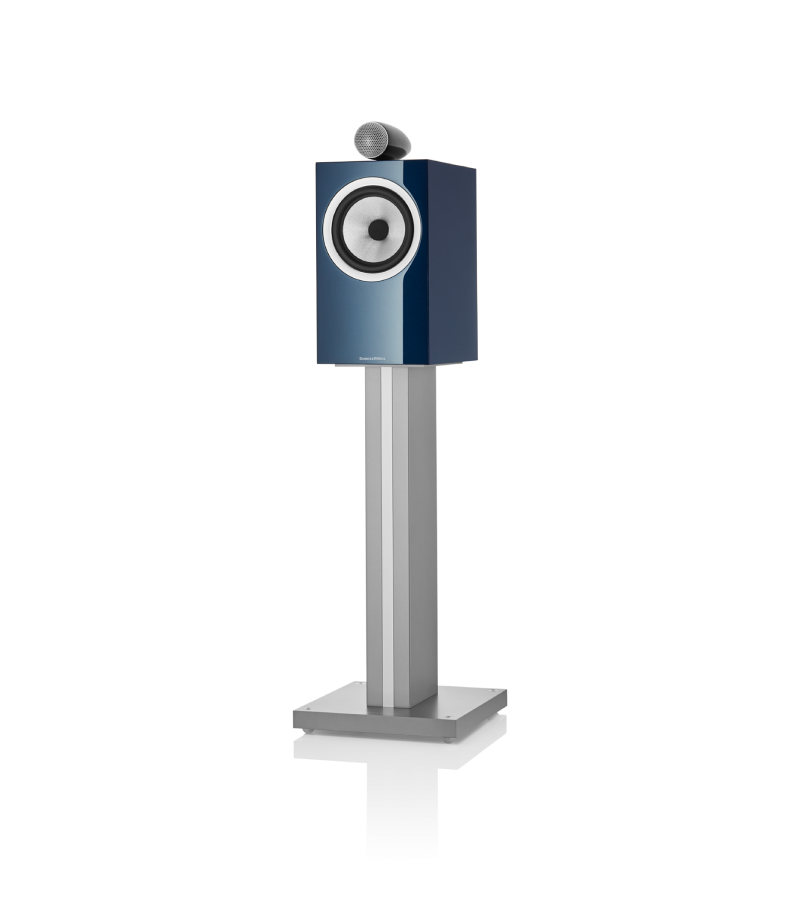

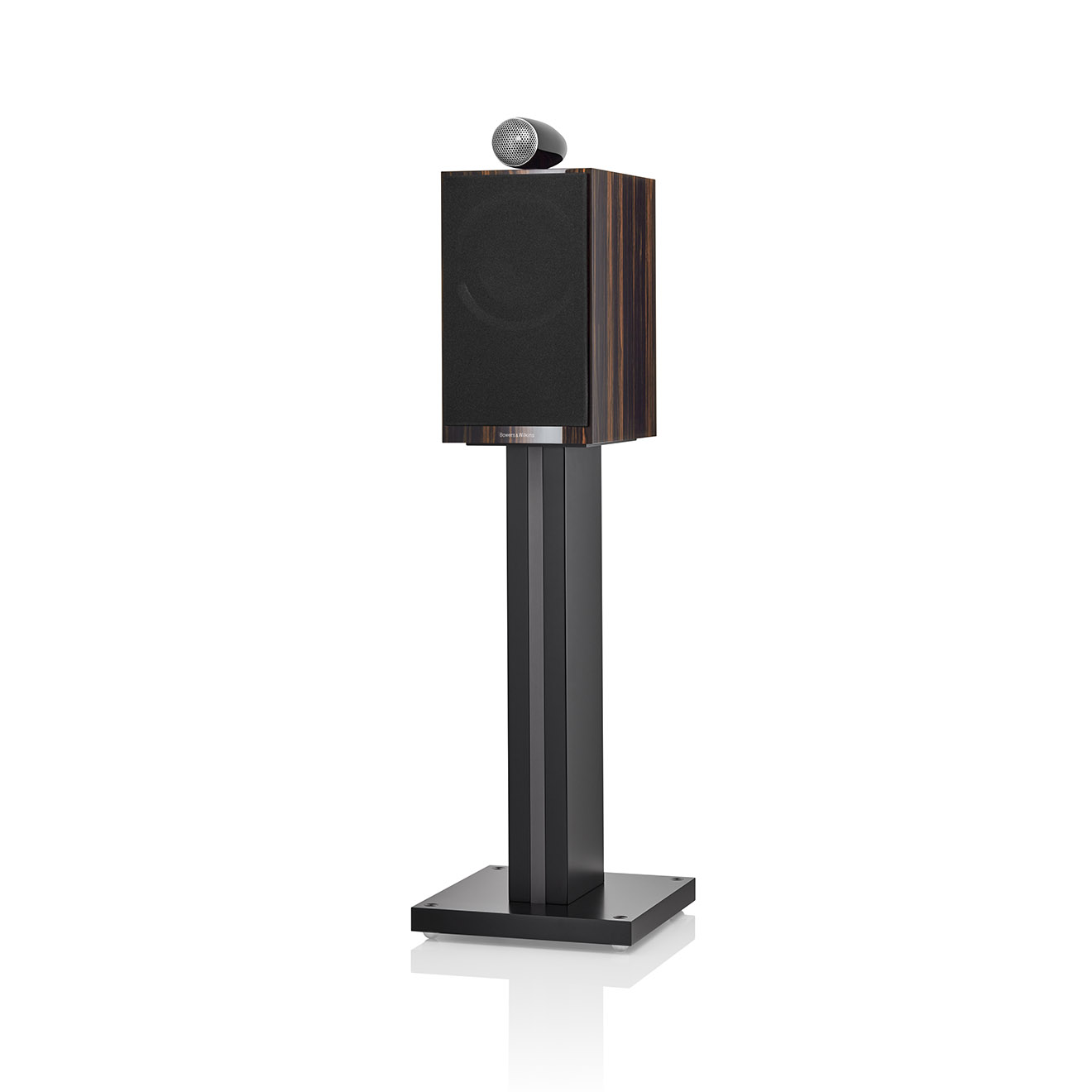

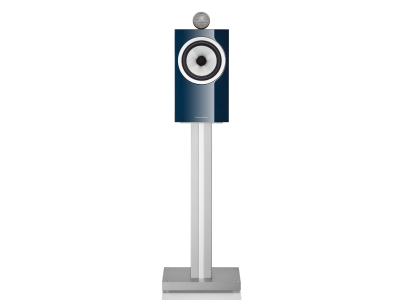

Cabinet finishes | Datuk Gloss , Midnight Blue Metallic |

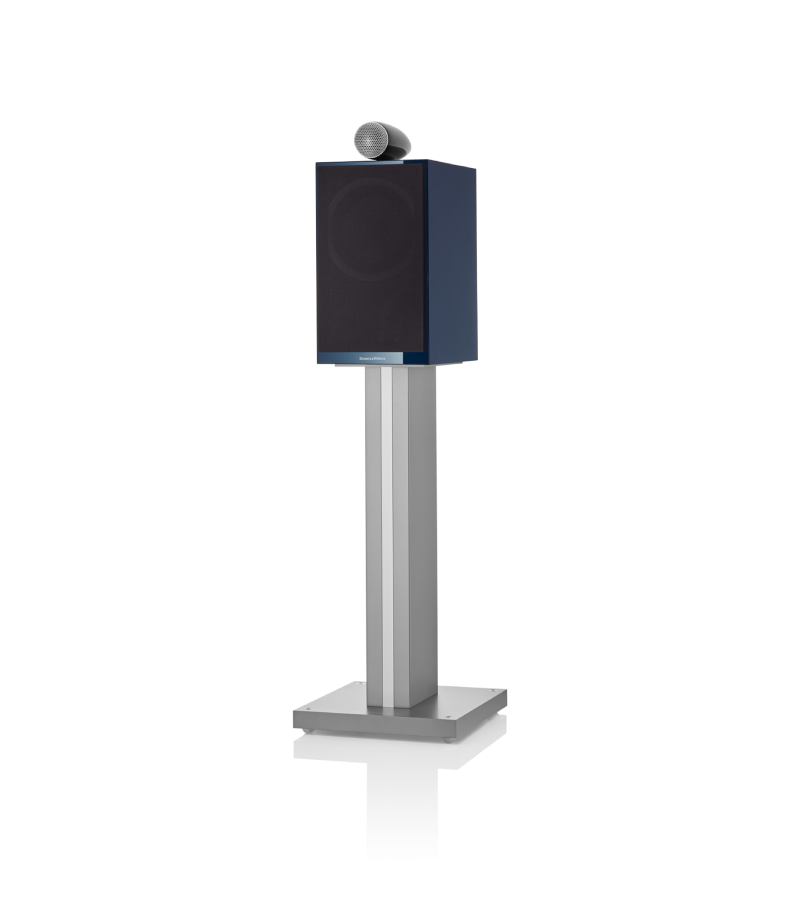

Grille finishes | Black |
