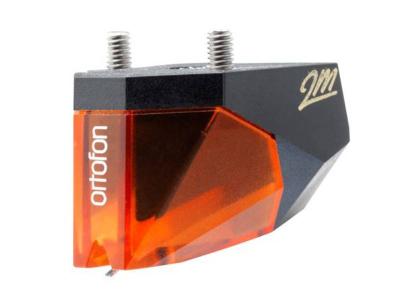

Ortofon 2M Bronze Verso Phono Cartridge - 2M Bronze Verso

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Literature

The 2M Bronze Verso model is an alternative product for bottom mount headshells
To find the recommended Ortofon replacement cartridge for your turmtable/tonearm please check out Replacement Cartridges selector

How to replace M2,0 mm screws on 2M Bronze Verso

  • Remove the stylus with the stylus protection guard from the cartridge body to avoid any damage to the diamond.
  • Using Torx 8 key, unscrew the black screw from the Verso top plate.
  • Remove the top plate from the cartridge body by pulling the screws off.
  • Remove the two countersunk screws from the top plate.
  • Insert the two M2,0 mm screws in the top plate.
  • Mount the top plate on the cartridge body. Hold the top plate with screw-threads hanging down and turn the cartridge body 180 degrees. Mount from above.
  • Mount the black screw in the top plate and tighten with appropriate force.
  • Mount the cartridge on the tonearm using the enclosed tool.
  • Mount the stylus with the stylus protection guard on the cartridge body.

2M Bronze Verso accessories included the package:

  • 1 x Stylus brush
  • 1 x Allen key Torx 6
  • 1 x Allen key Torx 8
  • 2 x Screw M2,0 x 6
  • 1 x Stylus pressure gauge
Specifications
Output voltage at 1 kHz, 5 cm/sec5 mV
Frequency range at -3 dB20–29,000 Hz
Tracking ability at 315 Hz at recommended tracking force80 µm
Compliance, dynamic, lateral22 µm/mN
Stylus typeNude Fine Line
Tracking force recommended1.5 g (15 mN)
Load resistance47 kOhm
Load capacitance150–300 pF
